Septic tank

ECODEPUR® FS | 1.5 to 5m3

The simplest solution for wastewater treatment

Capacity up to 5 m³

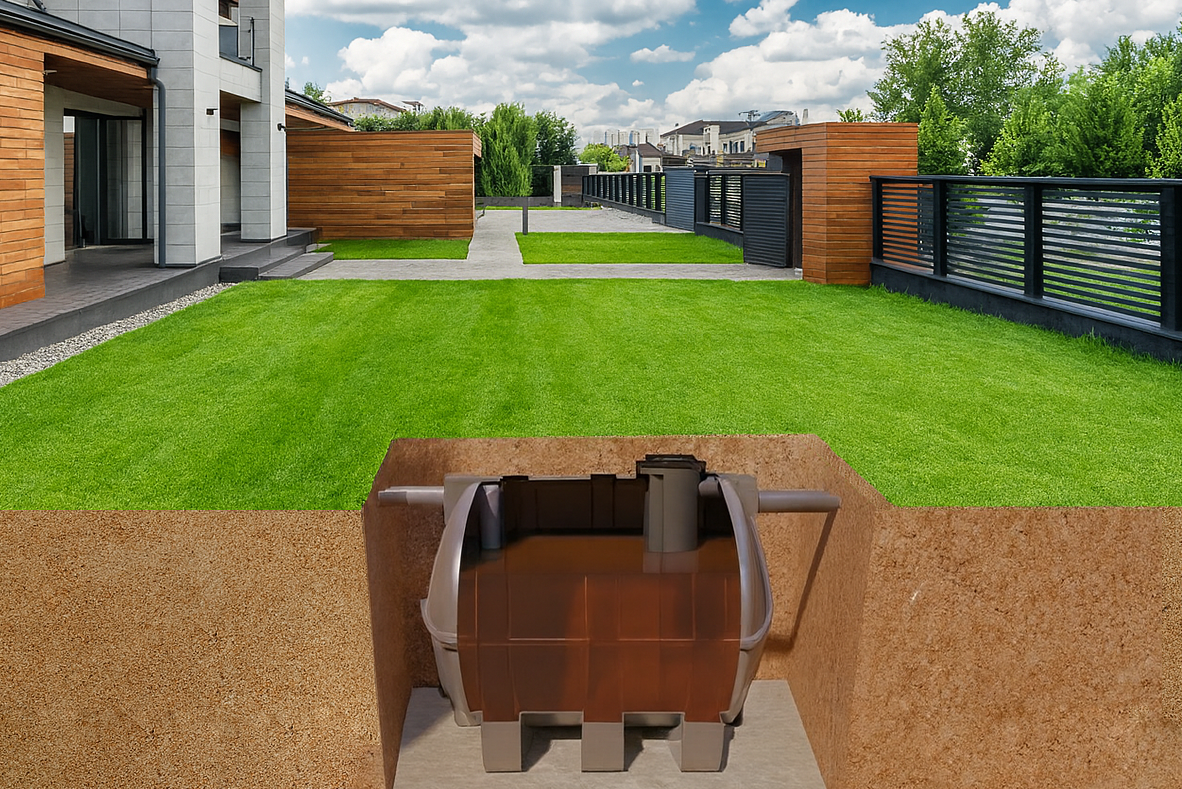

ECODEPUR ® FS septic tanks are equipment designed to store and treat domestic wastewater or similar, using a combination of decantation and anaerobic digestion processes. The system is equipped with a pre-filter to optimise the levels of organic matter reduction and retention of suspended solids.

The equipment is designed and manufactured in accordance with European Standard EN 12566-1 and is CE marked, in compliance with the legal requirements arising from Regulation (EU) No. 305/2011 of the European Parliament and of the Council on construction products.

CE marking EN 12566-1 for tanks with a nominal capacity of 2,000 litres or more;
Integrated pre-filter;
Light and easy to install and maintain;
Easy to install and maintain;
No unpleasant odours, with adequate ventilation;
Total watertightness (due to the material in which they are built, there are no leaks through the constituent walls, unlike traditional concrete systems);
No power consumption.

Model	Volume (m3)	Flow (l/s)	Length (mm)	Diameter (mm)	Width (mm)	Height (mm)	He (mm)	Hs (mm)	C (mm)	Pipe Diameter (mm)
FS VT1.5	-	-	1.350	1.210	-	1.310	1.090	1.040	400	110
FS VT2.0	-	-	-	1.530	-	1.655	1.460	1.410	400	110
FS VT3.0	-	-	1.900	1.500	-	1.550	1.305	1.245	400	110
FS VT4.0	-	-	-	1.890	-	1.940	1.735	1.685	400	110
FS VT5.0	-	-	2.320	1.800	-	1.870	1.615	1.560	400	110

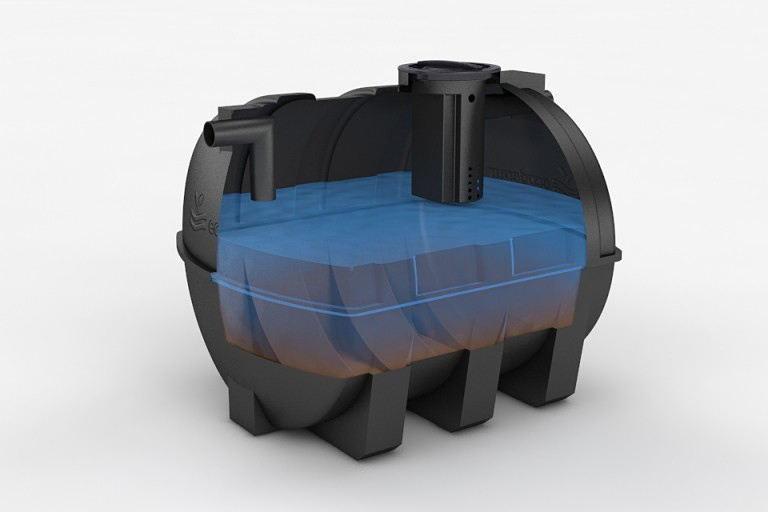

The operation of ECODEPUR ® FS septic tanks is based on three different processes:

Settling: the sludge settles, separating the solid phase from the liquid phase;
Digestion: the sludge undergoes anaerobic digestion and the organic matter is mineralised;
Solids retention: the harrow basket retains flotable solids.
