Compact Wastewater Treatment Plant

ECODEPUR® SBR

Compact SBR technology

Combines flexibility and performance in wastewater treatment

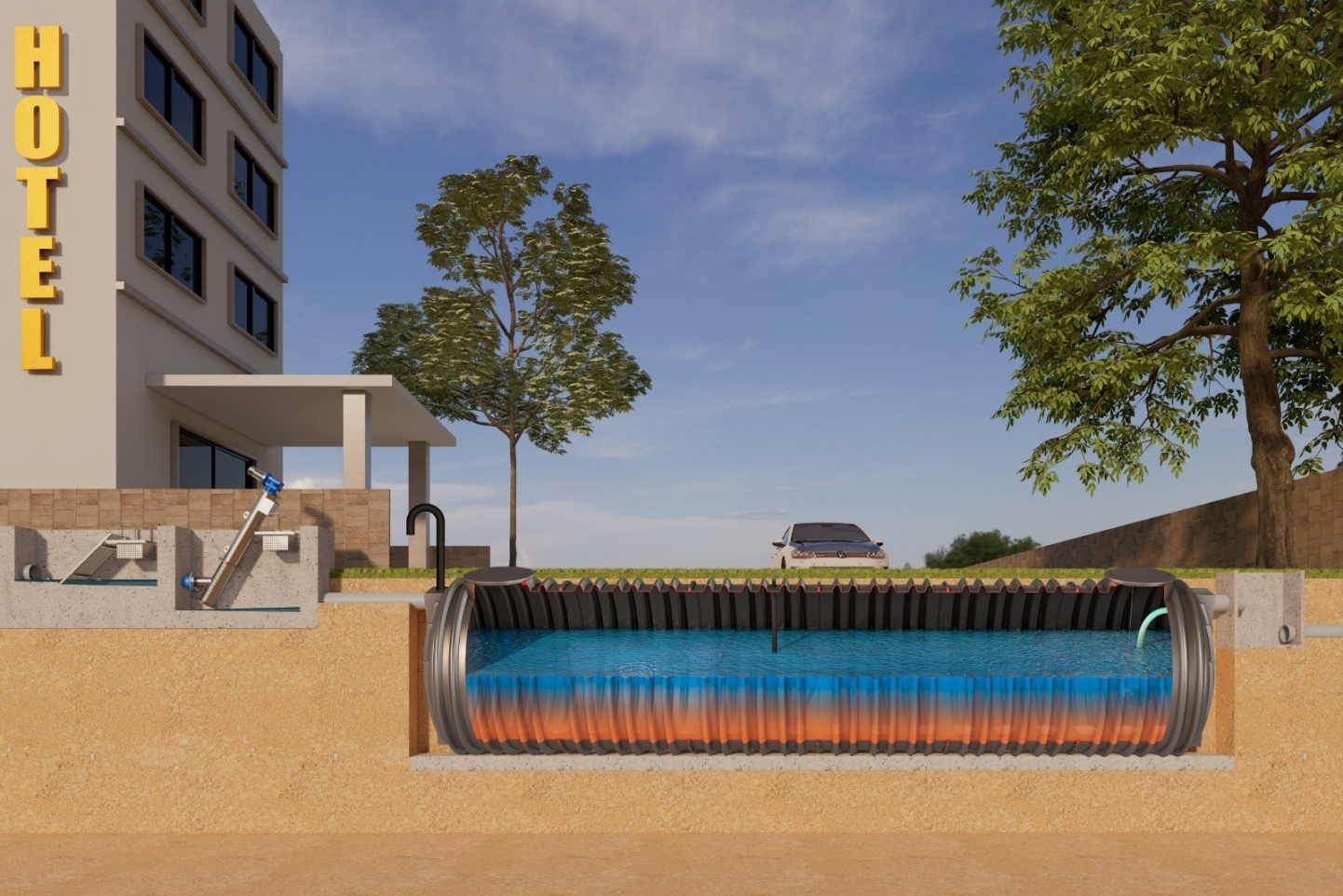

ECODEPUR® SBR (Compacta WWTP) domestic wastewater treatment systems are characterised by the fact that biological/secondary treatment is carried out using the activated sludge process in an ECODEPUR® SBR (Sequencing Batch Reactor).

The SBR typology is especially advantageous for small systems (< 3,000 equivalent inhabitants) since it effectively absorbs the disturbances introduced into secondary decantation by the high peak flows characteristic of small populations.

Quality requirements for treated water

Decree-Law no. 152/97 of 19 June, transposing into national law COUNCIL DIRECTIVE no. 91/271/EEC of 21 May 1991

Decree-Law no. 236/98, of 1st August

The systems can be dimensioned in accordance with specific regulatory requirements for other markets. Possibility of incorporating stages for eliminating nitrogen and phosphorus (on request)

Decree-Law no. 152/97 of 19 June, transposing into national law COUNCIL DIRECTIVE no. 91/271/EEC of 21 May 1991

Sized to meet the standards and legal requirements in force;
Treatment using an activated sludge system, low-load/long-hold regime (total oxidation);
Sequential Operation - BATCH System (Sequencing Batch Reactor);
Aeration and agitation ensured by a single component in high-performance conditions;
Modularity and ease of expansion;
High mechanical and chemical resistance due to the construction material (Polyethylene);
No unpleasant odours and zero visual impact;

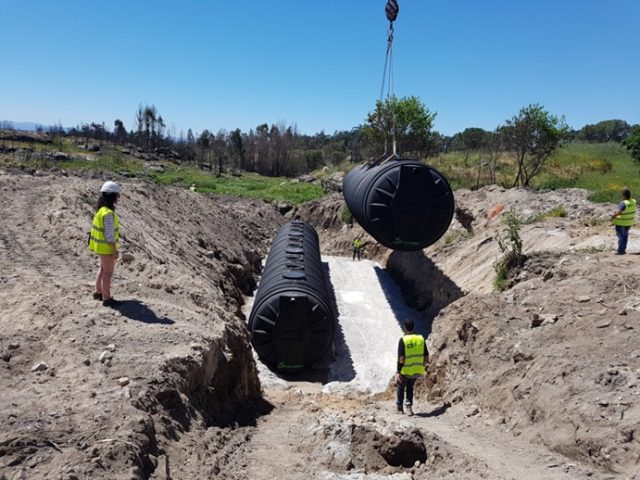

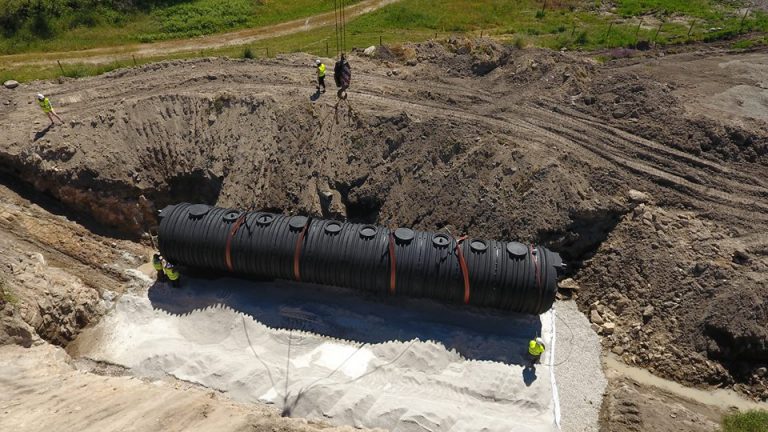

Easy and quick to install;
Simple operation and maintenance.

Model	Volume (m3)	Flow (l/s)	Length (mm)	Diameter (mm)	Width (mm)	Height (mm)	He (mm)	Hs (mm)	C (mm)	Pipe Diameter (mm)
SBR VT10	-	-	3.440	2.190	-	2.265	1.800	1.800	790	200
SBR VT15	-	-	4.980	2.190	-	2.265	1.800	1.800	790	200
SBR VT20	-	-	6.520	2.190	-	2.265	1.800	1.800	790	200
SBR VT25	-	-	8.060	2.190	-	2.265	1.800	1.800	790	200
SBR VT30	-	-	9.600	2.190	-	2.265	1.800	1.800	790	200
SBR VT35	-	-	11.140	2.190	-	2.265	1.800	1.800	790	200
SBR VT40	-	-	12.680	2.190	-	2.265	1.800	1.800	790	200
SBR VT45	-	-	14.220	2.190	-	2.265	1.800	1.800	790	200
SBR VT50	-	-	8.520	2.980	-	3.050	2.600	2.600	790	200
SBR VT60	-	-	10.060	2.980	-	3.050	2.600	2.600	790	200
SBR VT70	-	-	11.600	2.980	-	3.050	2.600	2.600	790	200
SBR VT80	-	-	13.140	2.980	-	3.050	2.600	2.600	790	200
SBR VT90	-	-	14.680	2.980	-	3.050	2.600	2.600	790	200
SBR VT100	-	-	16.220	2.980	-	3.050	2.600	2.600	790	200
SBR VT110	-	-	17.760	2.980	-	3.050	2.600	2.600	790	200
SBR VT120	-	-	19.300	2.980	-	3.050	2.600	2.600	790	200

Biological/secondary treatment will be carried out using the activated sludge process in an ECODEPUR® SBR (Sequencing Batch Reactor).

The activated sludge treatment process in a “Batch” system is mainly characterised by the fact that sludge aeration and decantation are carried out sequentially and cyclically in the same tank.

In addition, this system has the particularity of dispensing with the recirculation of biological sludge, since there is no loss of biomass in the aeration zone, unlike traditional continuous systems.

Biological start-up in SBR systems is extremely fast, since it does not depend on the effectiveness of sludge recirculation and can be achieved in less than a monthThe SBR typology is especially advantageous for small systems (< 3,000 inhabitants equivalent) since it effectively absorbs the disturbances introduced into secondary decantation by the high peak flows characteristic of small populations.

In order to avoid disturbances to the system as much as possible, decanting and discharging of treated water does not take place during peak flows.

In addition, the disturbance caused by affluent wastewater during the settling and discharge periods is practically nil, since these periods are regularised during periods of low flow.
