PE LIFTING STATION

ECODEPUR® ECO

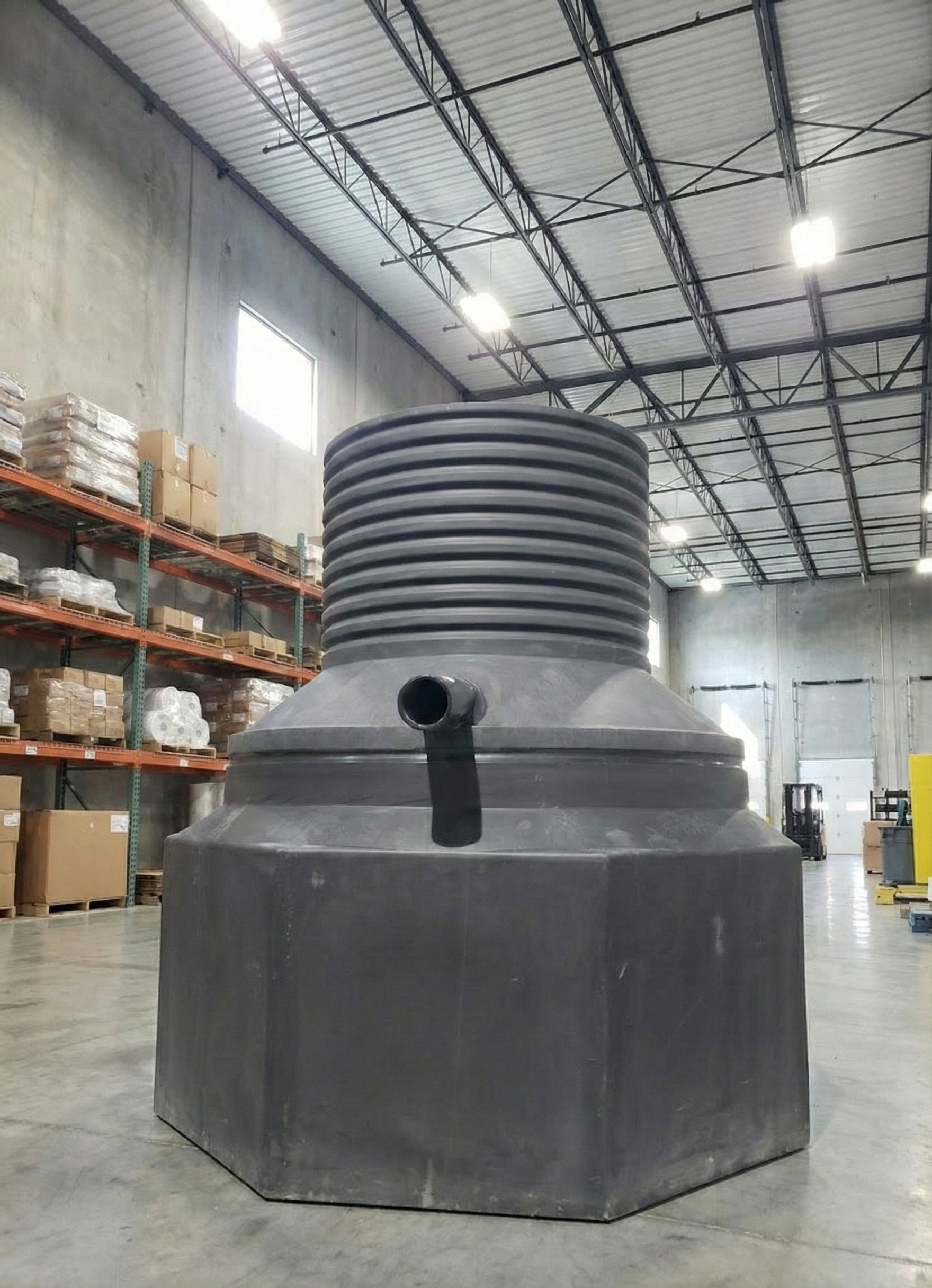

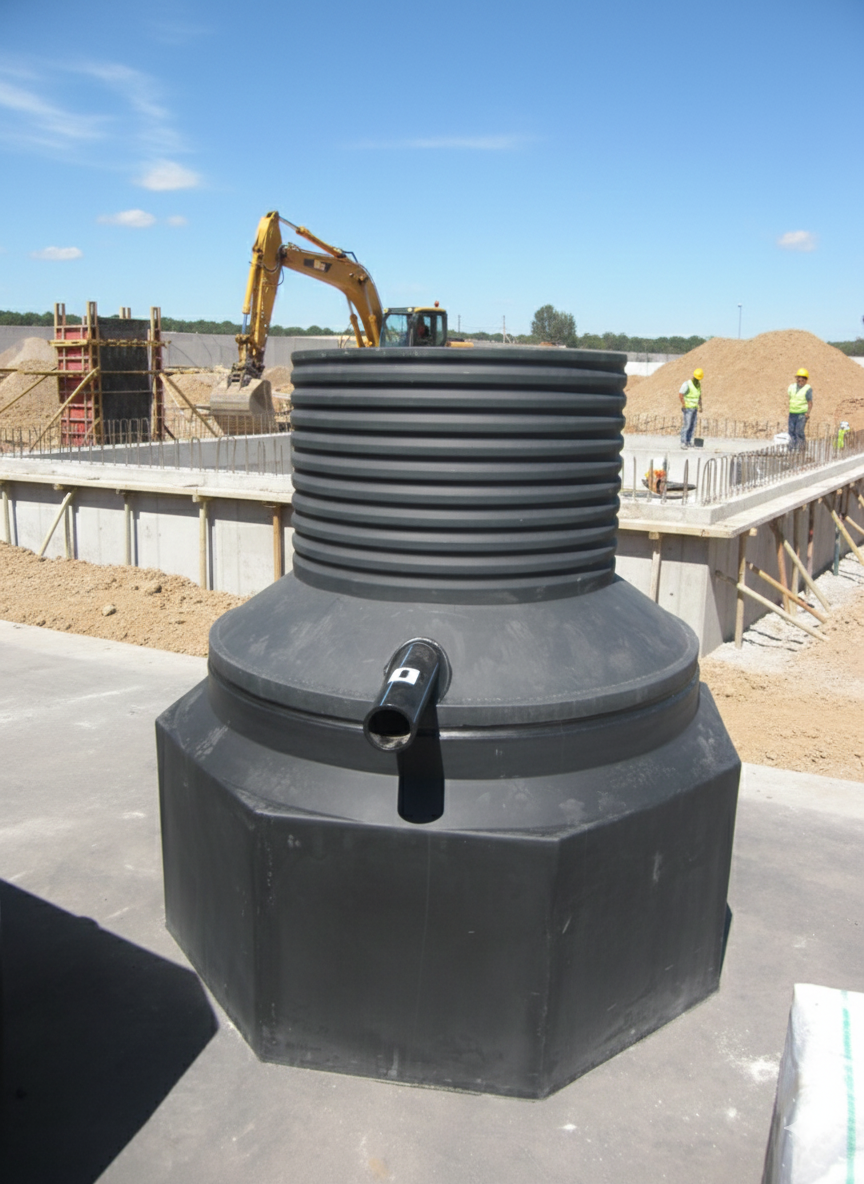

ECODEPUR® ECO Prefabricated Pumping Stations are complete water collection and lifting stations, ready to be installed. They are defined and dimensioned taking into account the specific typology of each application, with a view to optimising their operation and achieving the pre-established objectives safely and reliably.

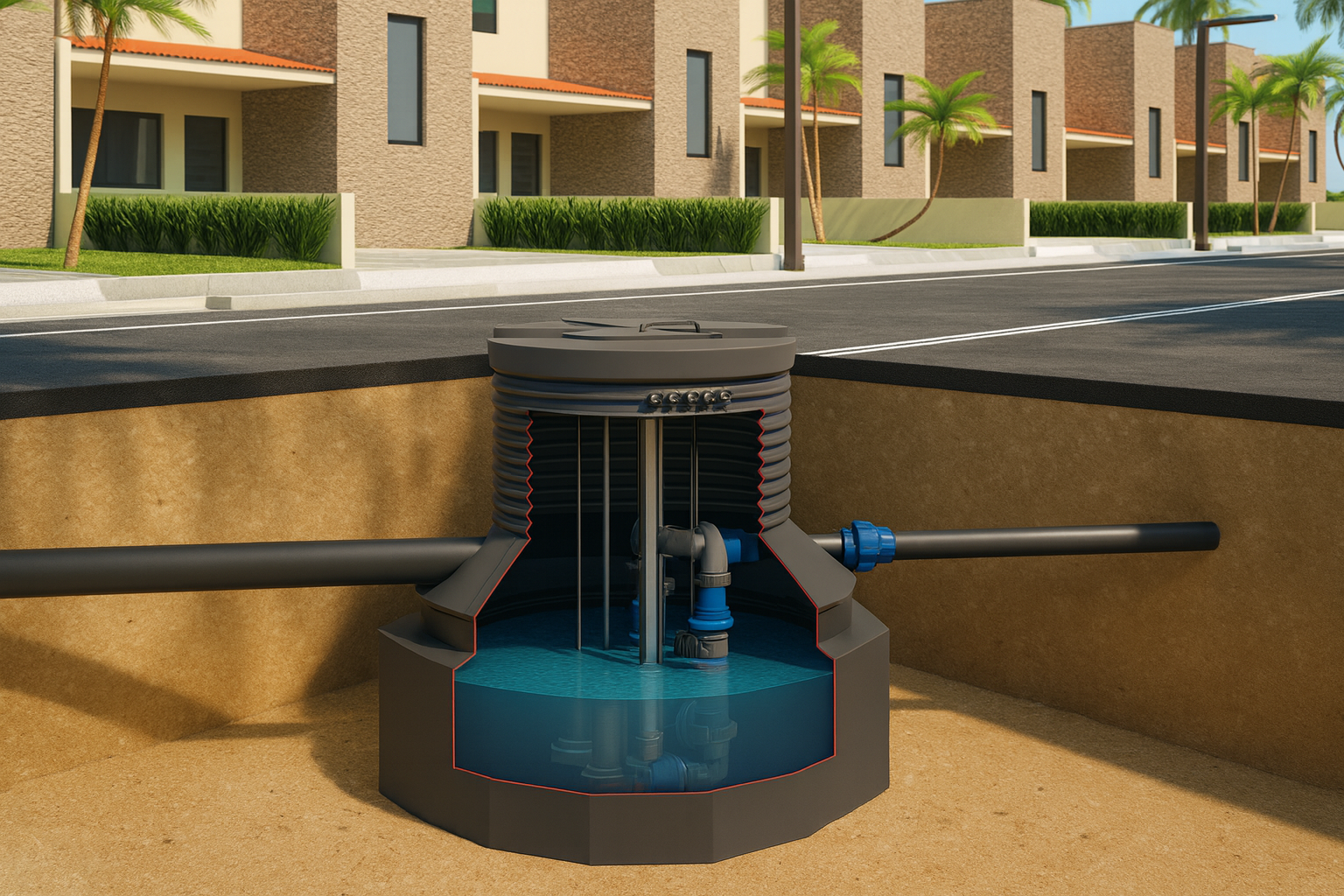

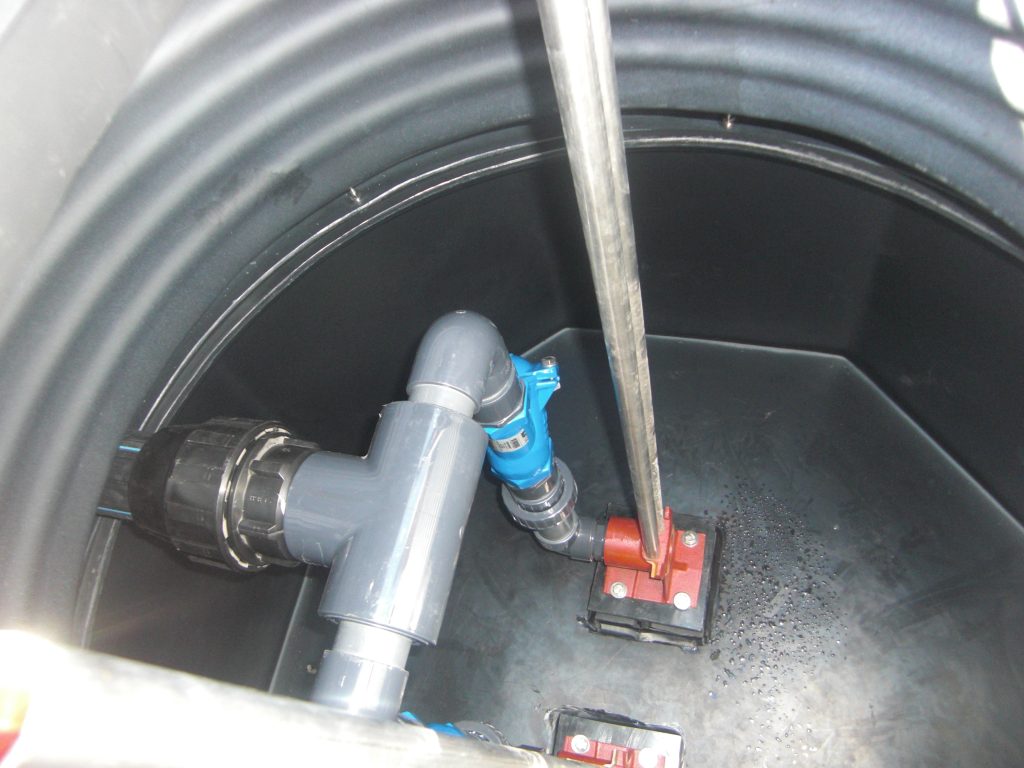

It consists of a polyethylene reservoir equipped with pumps suitable for the type of water to be lifted, a control panel and level switches. The pumps are installed using double guides with automatic fitting to the discharge base fixed to the bottom of the pumping station and PVC/PE compression pipework.

They are the ideal solution when water and/or effluent has to be pumped to a higher level than the collection point, or when gravity flow is not possible. The electromechanical equipment is CE marked in accordance with current legislation.

Depending on the size of the pumping station, several pumps can be used, and sizing is carried out on a case-by-case basis, according to the specifications provided by the client.

Liquid temperature: max. 40°C; zero visual impact;
Negligible noise and vibration;
Easy and quick to install;
High mechanical and chemical resistance due to the material
construction of the reservoir;
Simple operation and maintenance;
Automatic operation.

Model	Volume (m3)	Flow (l/s)	Length (mm)	Diameter (mm)	Width (mm)	Height (mm)	He (mm)	Hs (mm)	C (mm)	Pipe Diameter (mm)
ECO BST	-	-	1.450	1.550	-	1.085	820	820	820	-
ECO BTS PLUS	-	-	1.450	1.550	-	1.550	820	820	820	-
Mini ECO	-	-	765	710	-	1.215	955	795	400	-

ECODEPUR® ECO Prefabricated Pumping Stations are controlled by the electrical control panel of the direct start pump (single or three-phase) with protection against water shortage via a pear-type level float.
