Compact Wastewater Treatment Plant

ECODEPUR® MBBR

Continuous moving bed technology

Combining innovation and performance for sustainable wastewater solutions

MBBR technology is a cutting-edge technology in the field of sanitary and environmental engineering and is currently widely tested and validated. It incorporates the main benefits of the two most widely publicised treatment techniques: activated sludge and percolation beds.

It is a continuous flow biological treatment process that incorporates a synthetic bacterial medium in suspension, which allows for a higher density of biomass per reactor volume, resulting in more compact, preforming and reliable treatment units.

Quality requirements for treated water

Decree-Law no. 152/97 of 19 June, transposing into national law COUNCIL DIRECTIVE no. 91/271/EEC of 21 May 1991

Decree-Law no. 236/98, of 1st August

The systems can be dimensioned in accordance with specific regulatory requirements for other markets. Possibility of incorporating stages for eliminating nitrogen and phosphorus (on request)

Decree-Law no. 152/97 of 19 June, transposing into national law COUNCIL DIRECTIVE no. 91/271/EEC of 21 May 1991

MBBR technology integrates the main advantages of the two most widely used treatment techniques: activated sludge and trickling filters.

High treatment capacity thanks to the combination of fixed and suspended biomass processes;
Sized to meet the standards and legal requirements in force;
Reduced footprint compared to conventional systems;
Aeration controlled by O2 probe (high energy efficiency);
Low production and improved sludge settling characteristics;
High mechanical and chemical resistance due to the construction material (Polyethylene);
Absence of unpleasant odours and Visual impact;

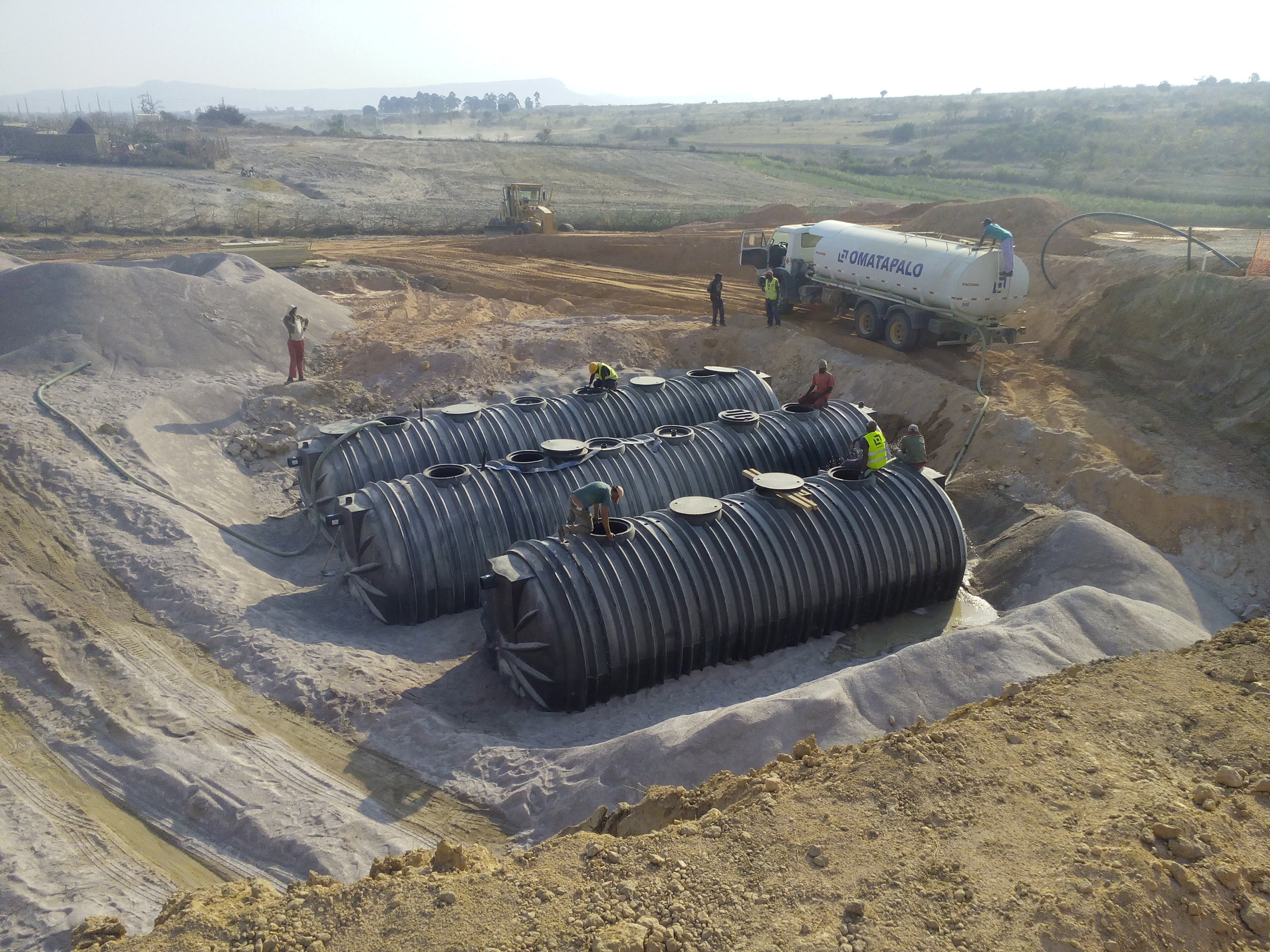

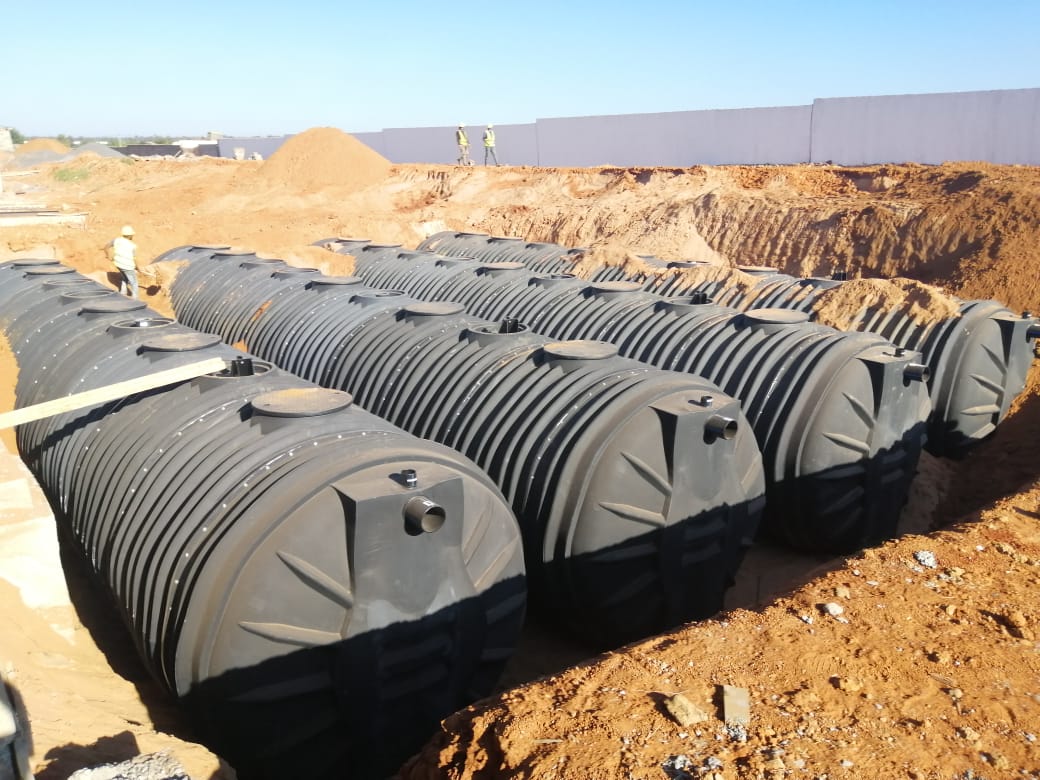

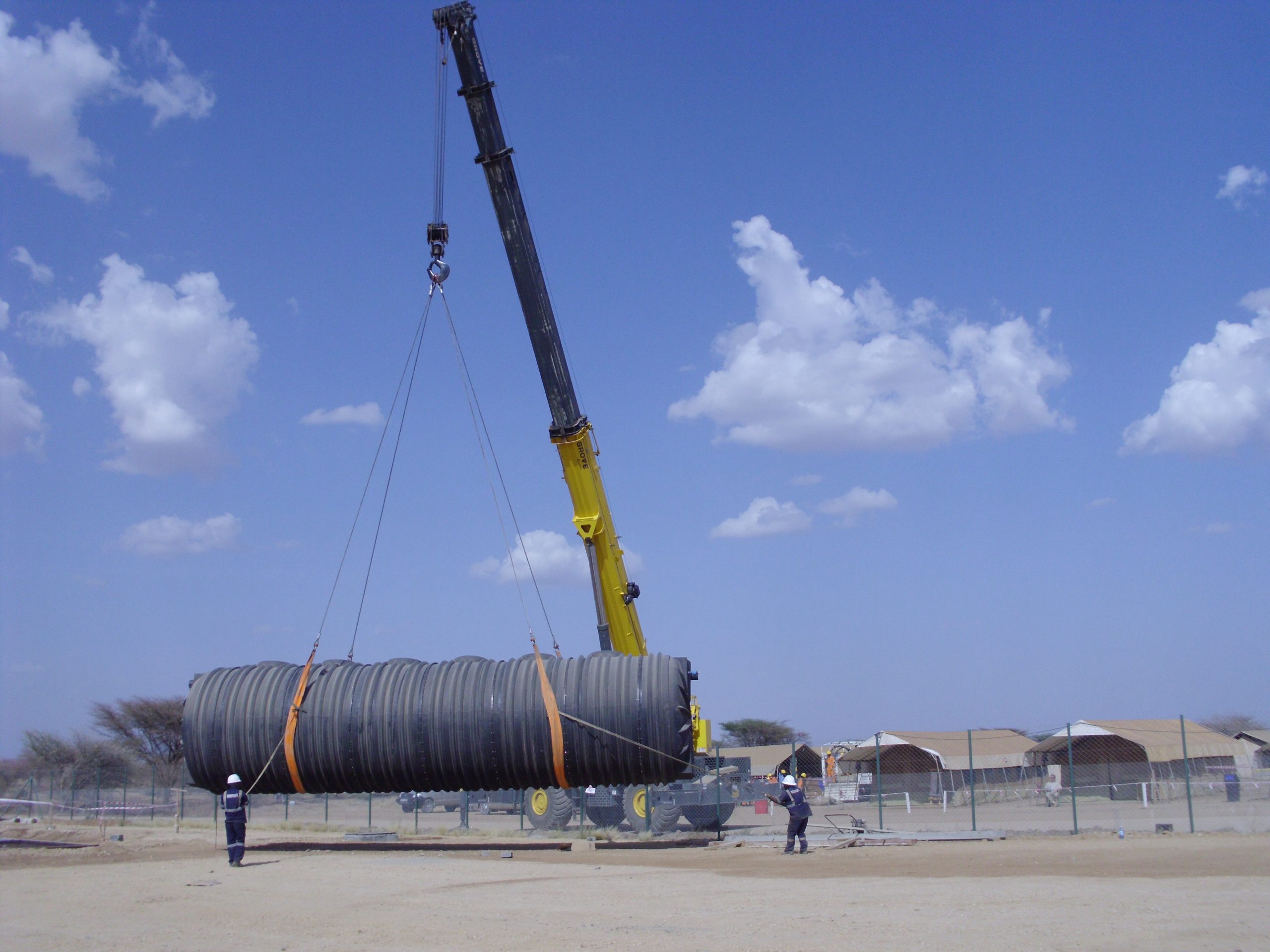

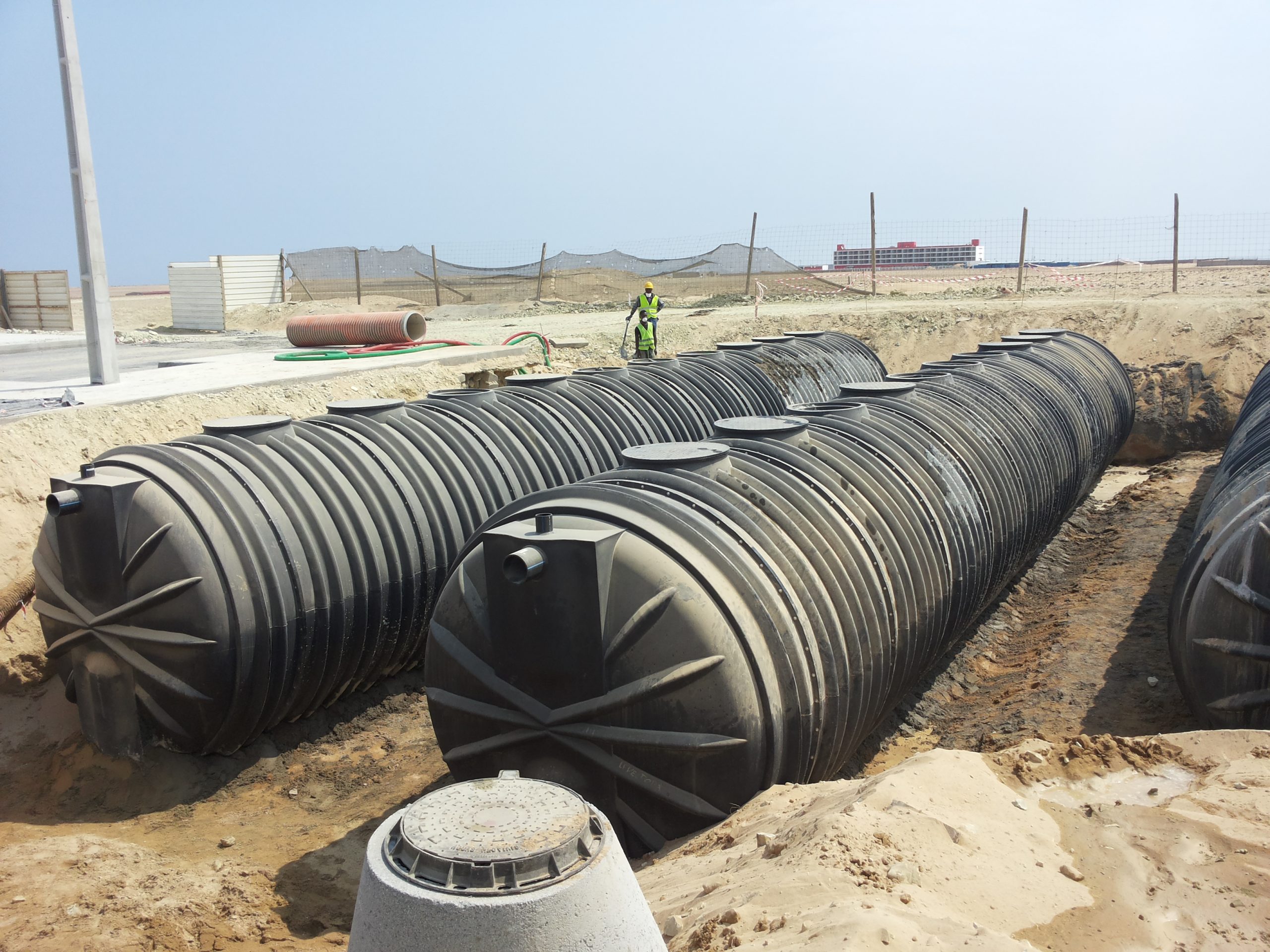

Easy and quick to install;
Modularity and ease of expansion;
Simple operation and maintenance.

Model	Volume (m3)	Flow (l/s)	Length (mm)	Diameter (mm)	Width (mm)	Height (mm)	He (mm)	Hs (mm)	C (mm)	Pipe Diameter (mm)
MBBR VT10	10	-	3.440	2.190	-	2.265	-	-	-	-
MBBR VT15	15	-	4.980	2.190	-	2.265	-	-	-	-
MBBR VT20	20	-	6.520	2.190	-	2.265	-	-	-	-
MBBR VT25	25	-	8.060	2.190	-	2.265	-	-	-	-
MBBR VT30	30	-	9.600	2.190	-	2.265	-	-	-	-
MBBR VT35	35	-	11.140	2.190	-	2.265	-	-	-	-
MBBR VT40	40	-	12.680	2.190	-	2.265	-	-	-	-
MBBR VT45	45	-	14.220	2.190	-	2.265	-	-	-	-
MBBR VT50	50	-	8.520	2.980	-	3.050	-	-	-	-
MBBR VT60	60	-	10.060	2.980	-	3.050	-	-	-	-
MBBR VT70	70	-	11.600	2.980	-	3.050	-	-	-	-
MBBR VT80	80	-	13.140	2.980	-	3.050	-	-	-	-
MBBR VT90	90	-	14.680	2.980	-	3.050	-	-	-	-
MBBR VT100	100	-	16.220	2.980	-	3.050	-	-	-	-
MBBR VT110	110	-	17.760	2.980	-	3.050	-	-	-	-
MBBR VT120	120	-	19.300	2.980	-	3.050	-	-	-	-

Os MBBR (MOVING BED BIOFILM REACTOR) reactors were created to combine the positive characteristics of activated sludge and percolator bed systems, benefiting from their functional simplicity and low initial investment and operating costs, versatility and reliability in meeting the legally required treatment levels, reducing the surface area of the plant and eliminating a number of operational problems typical of conventional lines, mainly associated with the loss of biomass from the biological reactor due to washout and the potential creation of anaerobic conditions in the secondary decanter, leading to the development of odours.

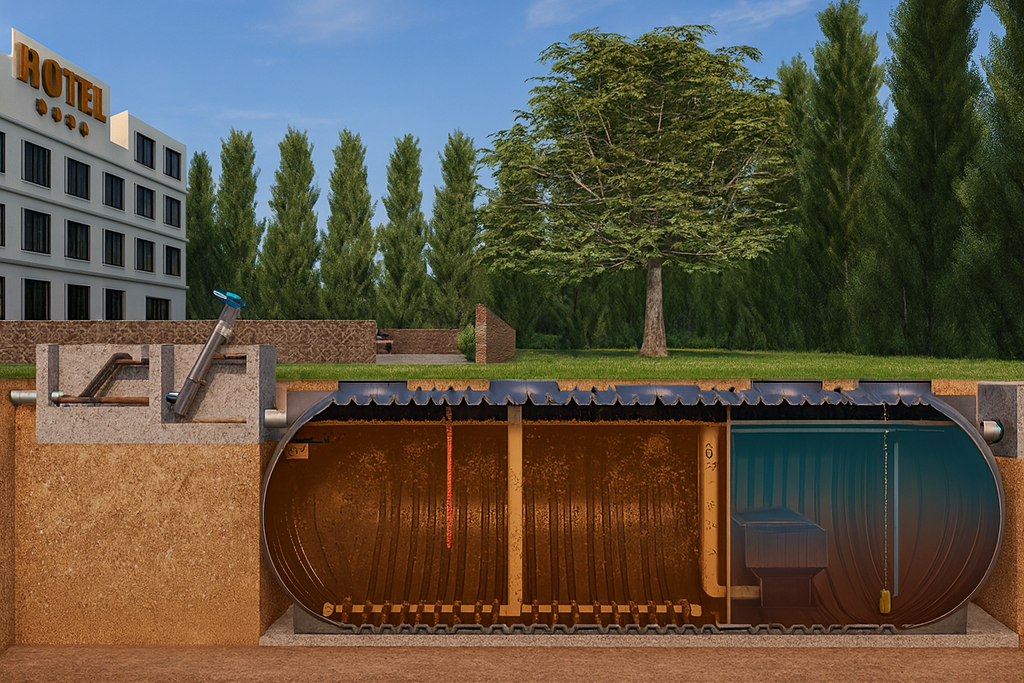

La technologie MBBR (MOVING BED BIOFILM REACTOR) technology is based on the development of biomass in polymeric support media that float in the mixed liquor of the bio-reactor. The use of synthetic bacterial support OXYBIO^®-GS allows the growth of a higher concentration of biomass per unit volume than conventional systems. As well as allowing the use of smaller reactors, these become more robust and less sensitive to variations in concentration and flow. Toxic events or hydraulic shocks have a much smaller effect on treatment efficiency as they do not affect the total biofilm population, ensuring rapid recovery.
