Compact Wastewater Treatment Plant

ECODEPUR® MB-SBR

Mobile bed SBR technology por Moving bed SBR technology

Combining technology and performance for sustainable wastewater treatment solutions

Technology MB-SBR (MOVING BED SEQUENCING BATCH REACTOR)) is a cutting-edge technology in the field of sanitary and environmental engineering, currently widely tested and validated. It combines the main advantages of the two most widely used treatment techniques: activated sludge and bacterial beds.

This is a sequential discontinuous biological treatment process that integrates biological media with a high specific surface area in suspension, allowing a high density of biomass per reactor volume, resulting in more compact, preforming and reliable treatment units.

Quality requirements for treated water

Decree-Law no. 152/97 of 19 June, transposing into national law COUNCIL DIRECTIVE no. 91/271/EEC of 21 May 1991

Decree-Law no. 236/98, of 1st August

The systems can be dimensioned in accordance with specific regulatory requirements for other markets. Possibility of incorporating stages for eliminating nitrogen and phosphorus (on request)

Decree-Law no. 152/97 of 19 June, transposing into national law COUNCIL DIRECTIVE no. 91/271/EEC of 21 May 1991

Technology MB-SBR It integrates the main advantages of the two most commonly used treatment techniques: the activated sludge and the trickling filters..

  • High treatment capacity thanks to the combination of fixed and suspended biomass processes;
  • Sized to meet the standards and legal requirements in force;
  • Reduced footprint compared to conventional systems;
  • Aeration controlled by O2 probe and variable frequency drive (high energy efficiency);
  • Low production and improved sludge settling characteristics;
  • Modularity and ease of expansion;
  • High mechanical and chemical resistance due to the construction material (Polyethylene);
  • No unpleasant odours and zero visual impact;

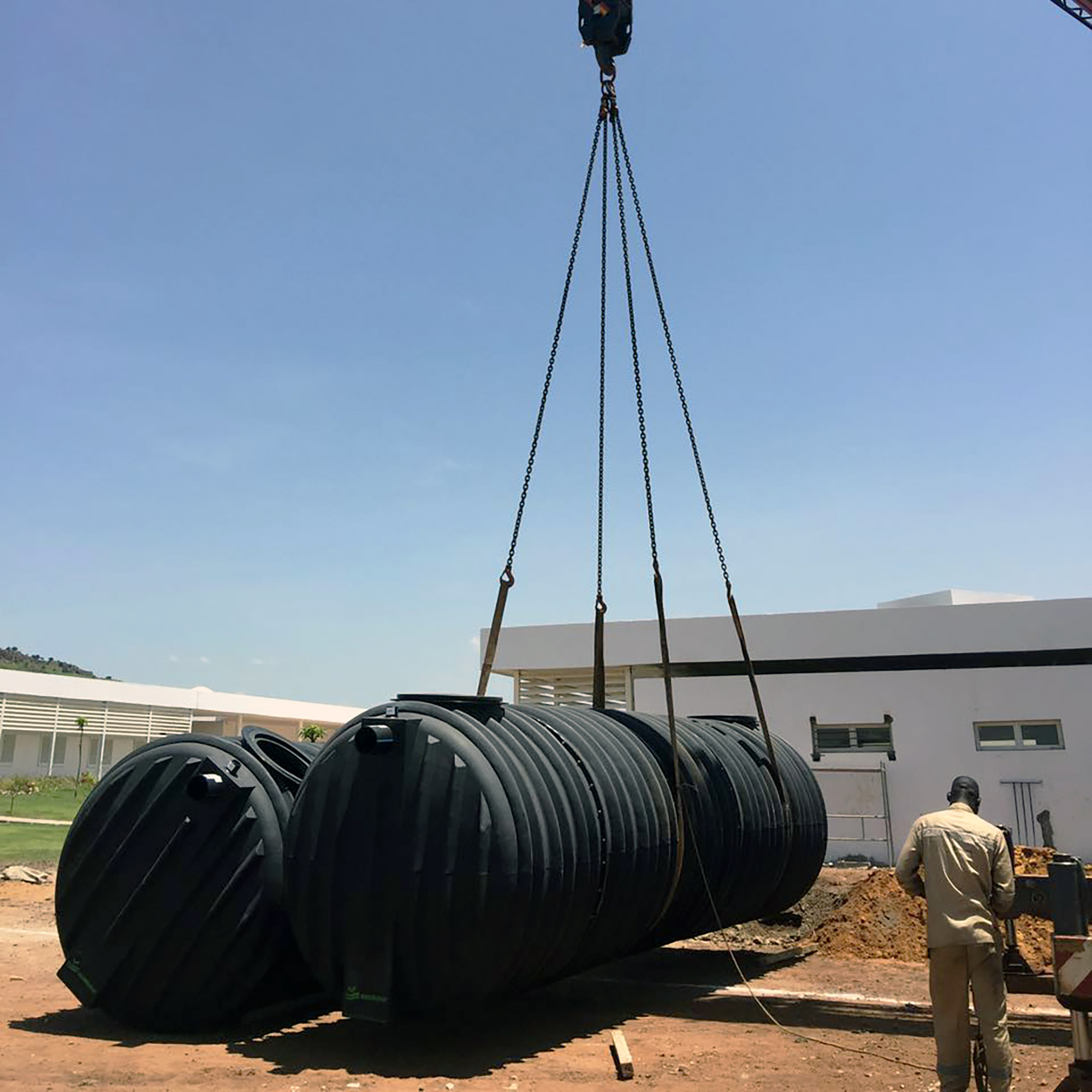

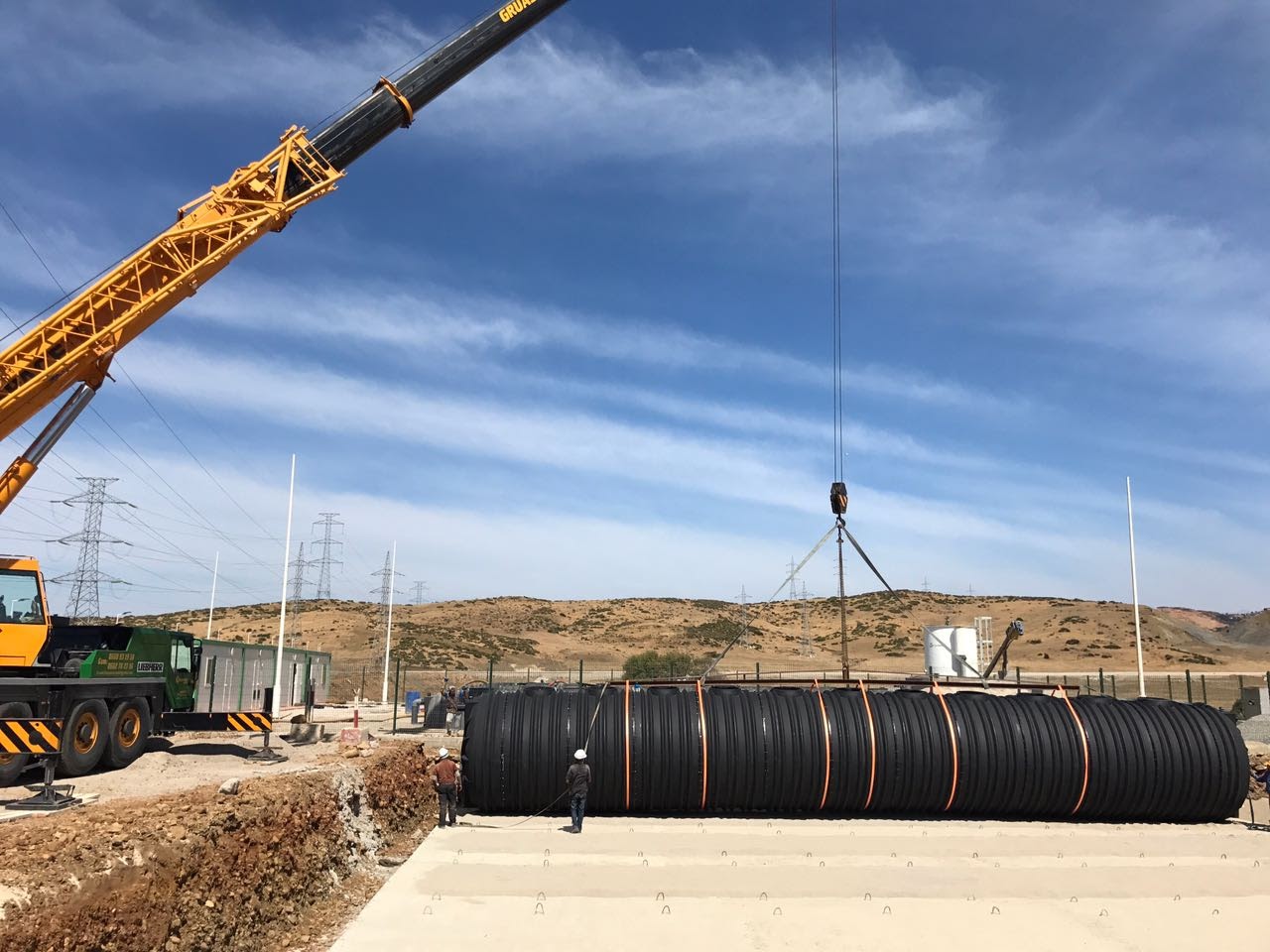

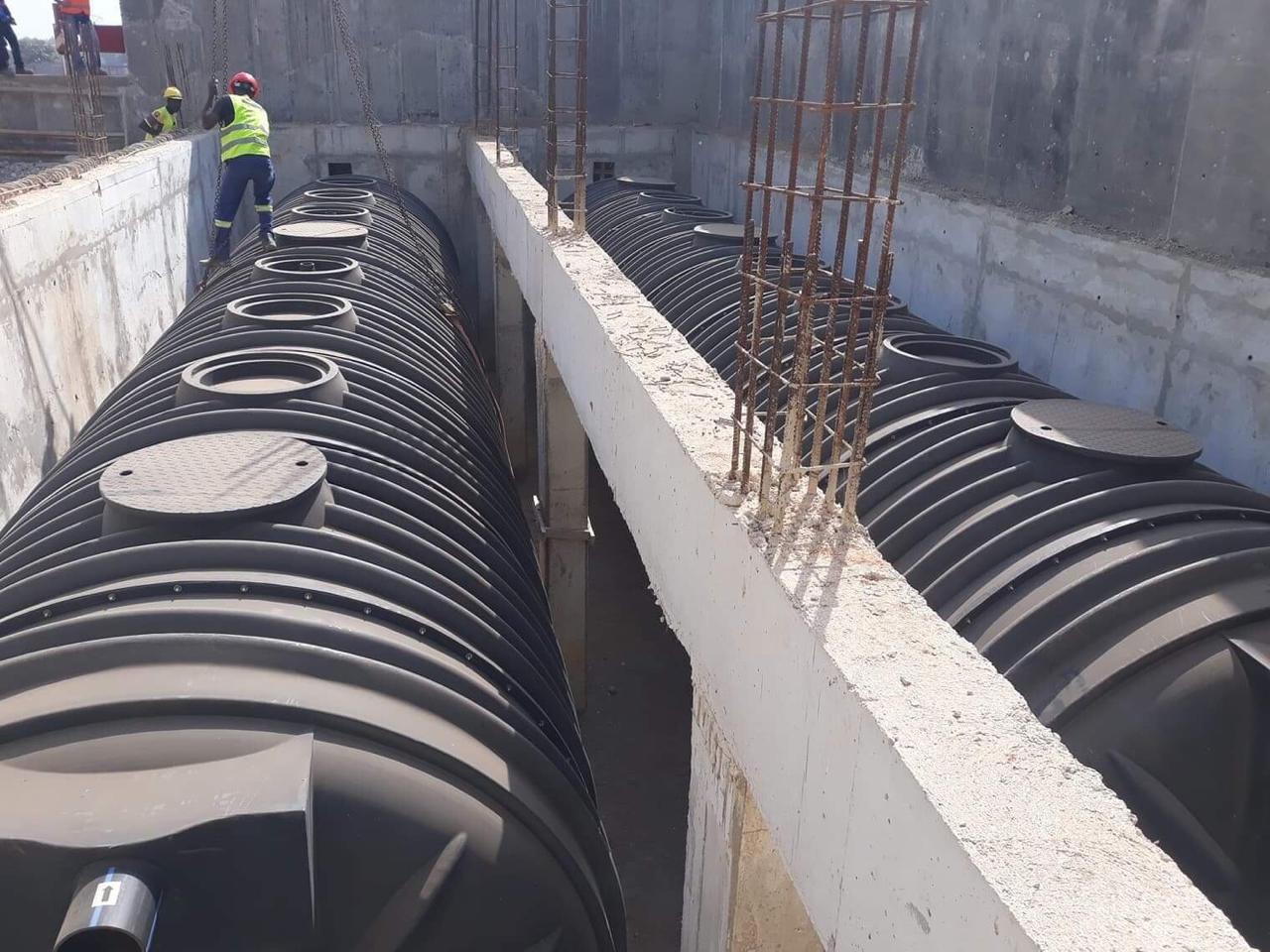

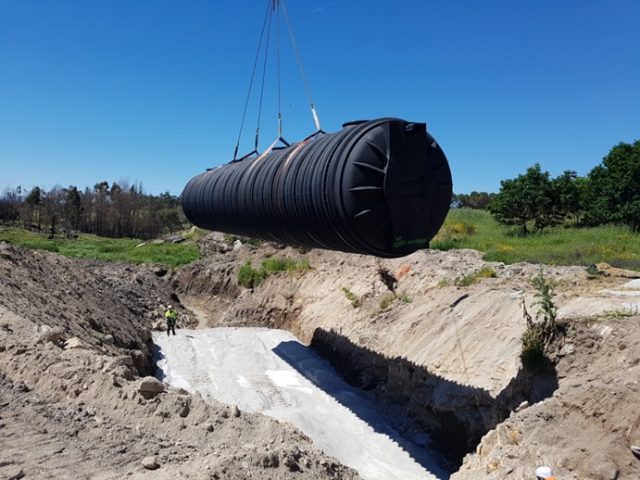

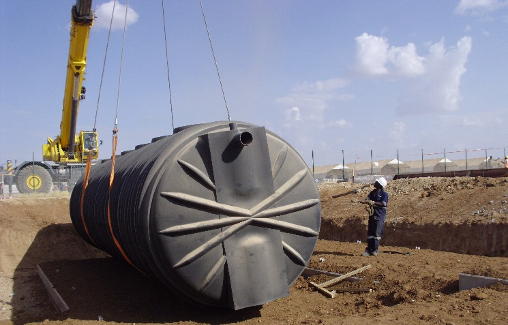

  • Easy and quick to install;
  • Simple operation and maintenance.

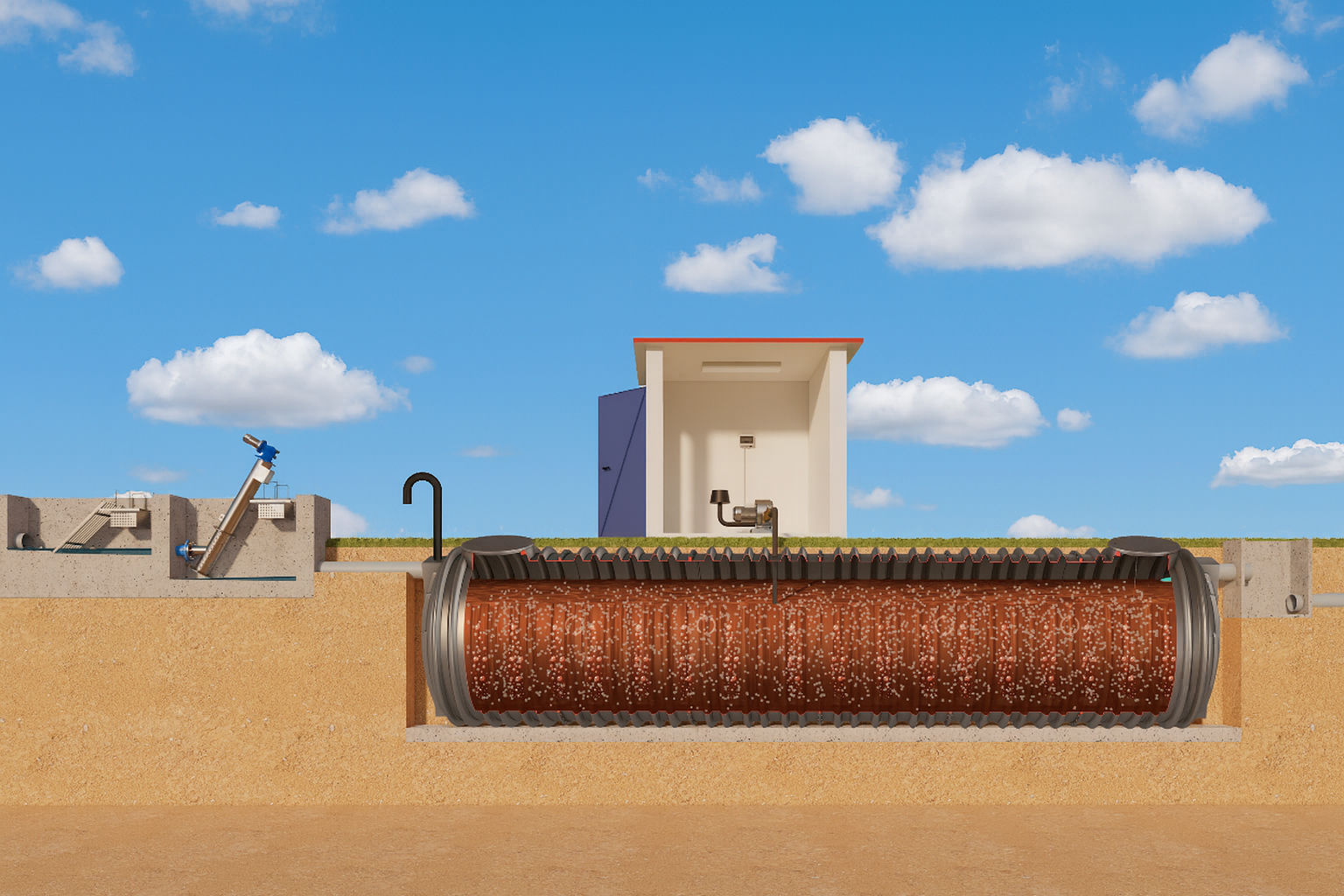

b182608b-d909-47bf-89d8-3d692872bcce
ModelHAB (hab/eq)Volume (m3)Flow (l/s)Length (mm)Diameter (mm)Width (mm)Height (mm)He (mm)Hs (mm)C (mm)Pipe Diameter (mm)Documents
MB-SBR VT1010-3.4402.190-2.265----
MB-SBR VT1515-4.9802.190-2.265----
MB-SBR VT2020-6.5202.190-2.265----
MB-SBR VT2525-8.0602.190-2.265----
MB-SBR VT3030-9.6002.190-2.265----
MB-SBR VT3535-11.1402.190-2.265----
MB-SBR VT4040-12.6802.190-2.265----
MB-SBR VT4545-14.2202.190-2.265----
MB-SBR VT5050-8.5202.980-3.050----
MB-SBR VT6060-10.0602.980-3.050----
MB-SBR VT7070-11.6002.980-3.050----
MB-SBR VT8080-13.1402.980-3.050----
MB-SBR VT9090-14.6802.980-3.050----
MB-SBR VT100100-16.2202.980-3.050----
MB-SBR VT110110-17.7602.980-3.050----
MB-SBR VT120120-19.3002.980-3.050----
  • Caption: C - Cover | He - Inlet pipe level | Hs - Outlet pipe level
  • All measurements are given in millimetres, with a tolerance of ±2%, and may be changed without prior notice.

As with the SBR (Sequencing Batch Reactor) system, the MBSBR (Moving Bed Sequencing Batch Reactor) is mainly characterised by the fact that the aeration and settling stages are carried out sequentially and cyclically in the same tank/reactor.

ECODEPUR® MBSBR (MOVING BED SEQUENCING BATCH REACTOR) biological reactors incorporate ECODEPUR® OXYBIO® HD biological support, which stands out for its high specific surface area and excellent hydraulic behaviour.

ECODEPUR® also offers complete support for installation, commissioning, maintenance and operation. ECODEPUR® MBSBR OXYBIO® HD reactors can be equipped with the instrumentation and sensing required for real-time telemonitoring and remote management of control parameters; flow rates and volumes of treated water; electrical consumption and equipment operating status, ensuring optimised system operation.



Domestic component of industrial sewage
Small settlements
Schools and Universities
Construction sites
Tourist and sports complexes
Hotels

Tertiary treatment systems

ECODEPUR® SLUDGE DRY

Flow meters

Strainers

Technical documentation

Equipment Catalogue
