Water Storage

ECODEPUR® RA

The practical aerial water storage solution

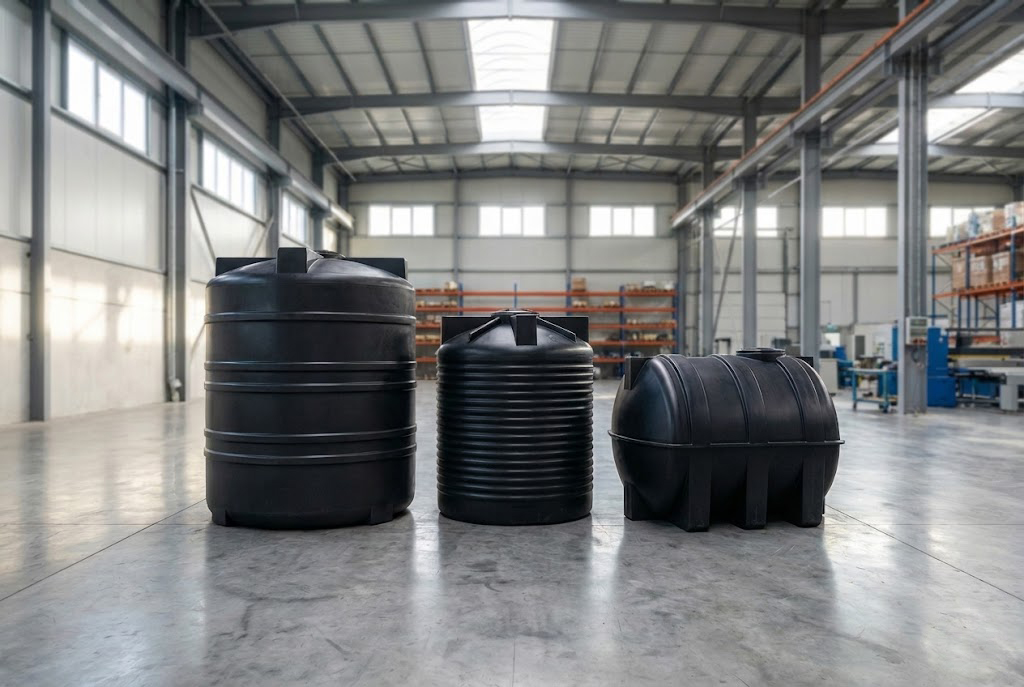

ECODEPUR® RA Aerial Tanks are designed to store water for human consumption, urban, industrial and agricultural uses.
The main advantages are:

Suitable for storing water for human consumption (Supplied with declaration of Conformity of
Food Quality);
Light and easy to install and maintain;
Total watertightness (due to the material they are made of, there are no leaks through the constituent walls,
unlike traditional concrete systems);
Easy to install and maintain.

- Made from anti-UV additive polyethylene using a rotomoulding system, which translates into a high level of durability.
mechanical resistance and insensitivity to corrosion;
- Horizontal and vertical reinforcements are properly located, providing the structure with high resistance;
- Man inlet Ø 400 mm.

Model	HAB (hab/eq)	Volume (m3)	Flow (l/s)	Length (mm)	Diameter (mm)	Width (mm)	Height (mm)	He (mm)	Hs (mm)	C (mm)	Pipe Diameter (mm)
RAV-500		500	-	731	700	-	1.255	-	-	400	-
RAH-1500		1.500	-	1.350	1.210	-	1.310	-	-	400	-
RAV-2000		2.000	-	-	1.530	-	1.655	-	-	400	-
RAH-3000		3.000	-	1.900	1.500	-	1.550	-	-	400	-
RAV-4000		4.000	-	-	1.890	-	1.940	-	-	400	-
RAH-5000		5.000	-	2.320	1.800	-	1.870	-	-	400	-
RAV VT10	-	10000	-	-	2400	-	2363	-	-	400	-
RAV VT15	-	15000	-	-	2500	-	3292	-	-	400	-
