Micro SBR

ECODEPUR® AQUADEPUR®

High Performance Scrubber

Up to 50 inhabitants equivalent

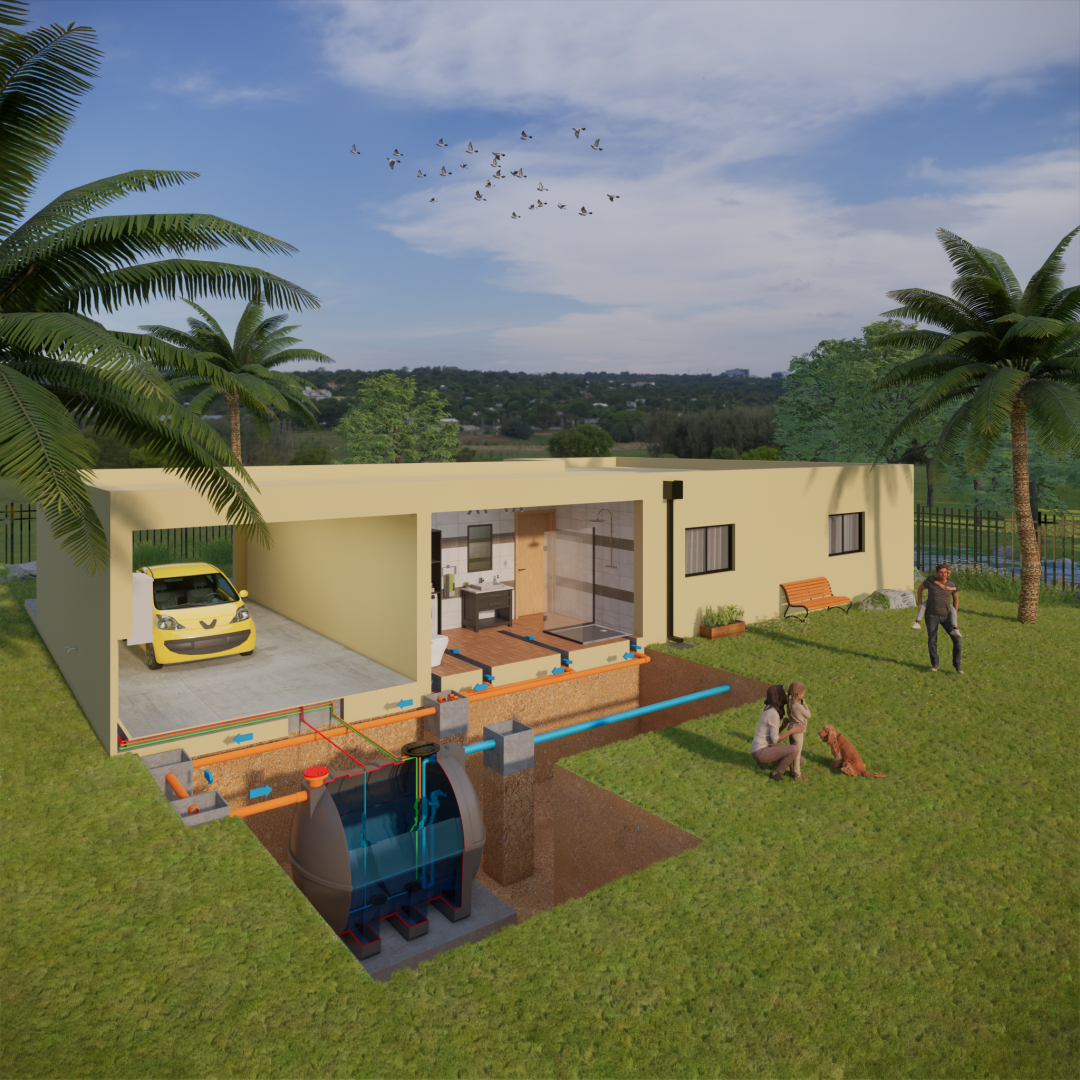

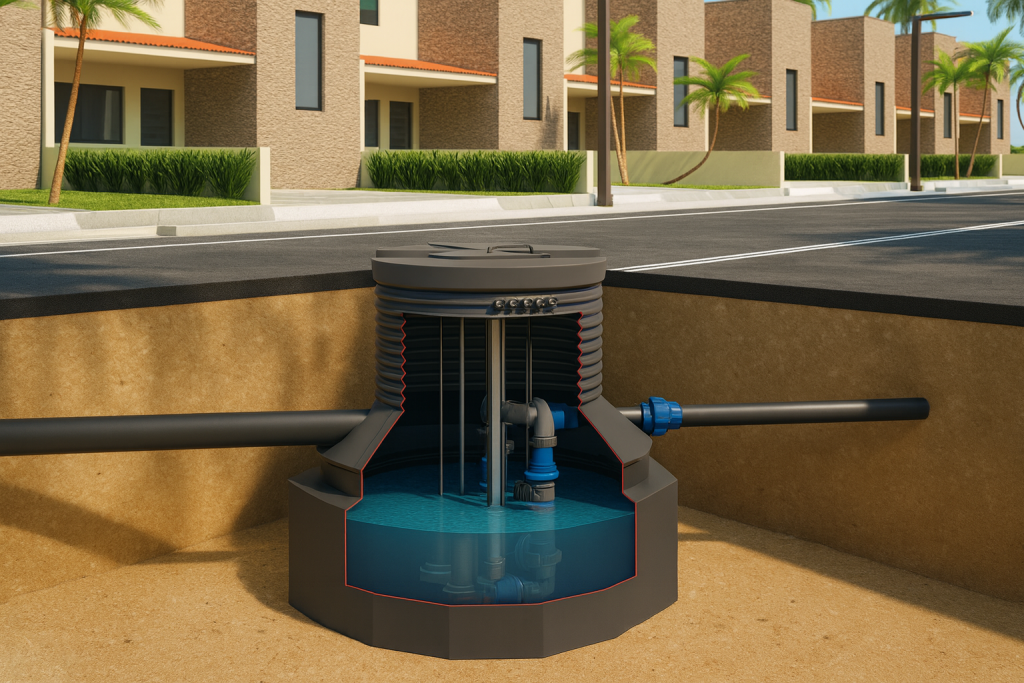

ECODEPUR Micro SBR^® AQUADEPUR^® is a high-performance wastewater treatment plant, ideal for single-family homes and small settlements where no sewerage system is available.

Its conception, design, quality of raw materials and components, testing (mechanical resistance and treatment levels) and production control (ISO9001 / ISO14001 conditions) guarantee reliable and permanent operation with minimal human intervention, simplifying and ensuring compliance with legal emission limits, protecting and safeguarding the quality of surface and groundwater.

Quality objectives

Micro SBR AQUADEPUR^® has been designed and tested in accordance with European standard EN 12566-3, demonstrating treatment efficiencies higher than legally required and enabling it to respond to any increase in regulatory requirements.

CE marking: designed, manufactured and tested in accordance with EN 12566-3;
Levels of treatment, watertightness, structural behaviour and durability tested by an external entity accredited by the European Union for this purpose;
Full compliance with current legislation;
Minimal energy consumption (high energy efficiency);
No chemical or biological products;
No odours;
Quiet system with no visual impact;
No pumps or other submerged equipment;
Easy and quick to install;
High durability and quality of installed components;
Minimal human intervention;
Easy upgrade for reuse of treated water in Class B irrigation.

Model	Volume (m3)	Flow (l/s)	Length (mm)	Diameter (mm)	Width (mm)	Height (mm)	He (mm)	Hs (mm)	C (mm)	Pipe Diameter (mm)
AQUADEPUR® 6	3.000	-	1.500	-	1.900	1.550	1.280	1.280	400	110
AQUADEPUR® 10	5.000	-	1.800	-	2.320	1.870	1.560	1.560	400	110
AQUADEPUR® 25	10.000	-	2.190	-	3.440	2.265	1.800	1.800	790	200
AQUADEPUR® 40	15.000	-	2.190	-	4.980	2.265	1.800	1.800	790	200
AQUADEPUR® 50	20.000	-	2.190	-	6.520	2.265	1.800	1.800	790	200

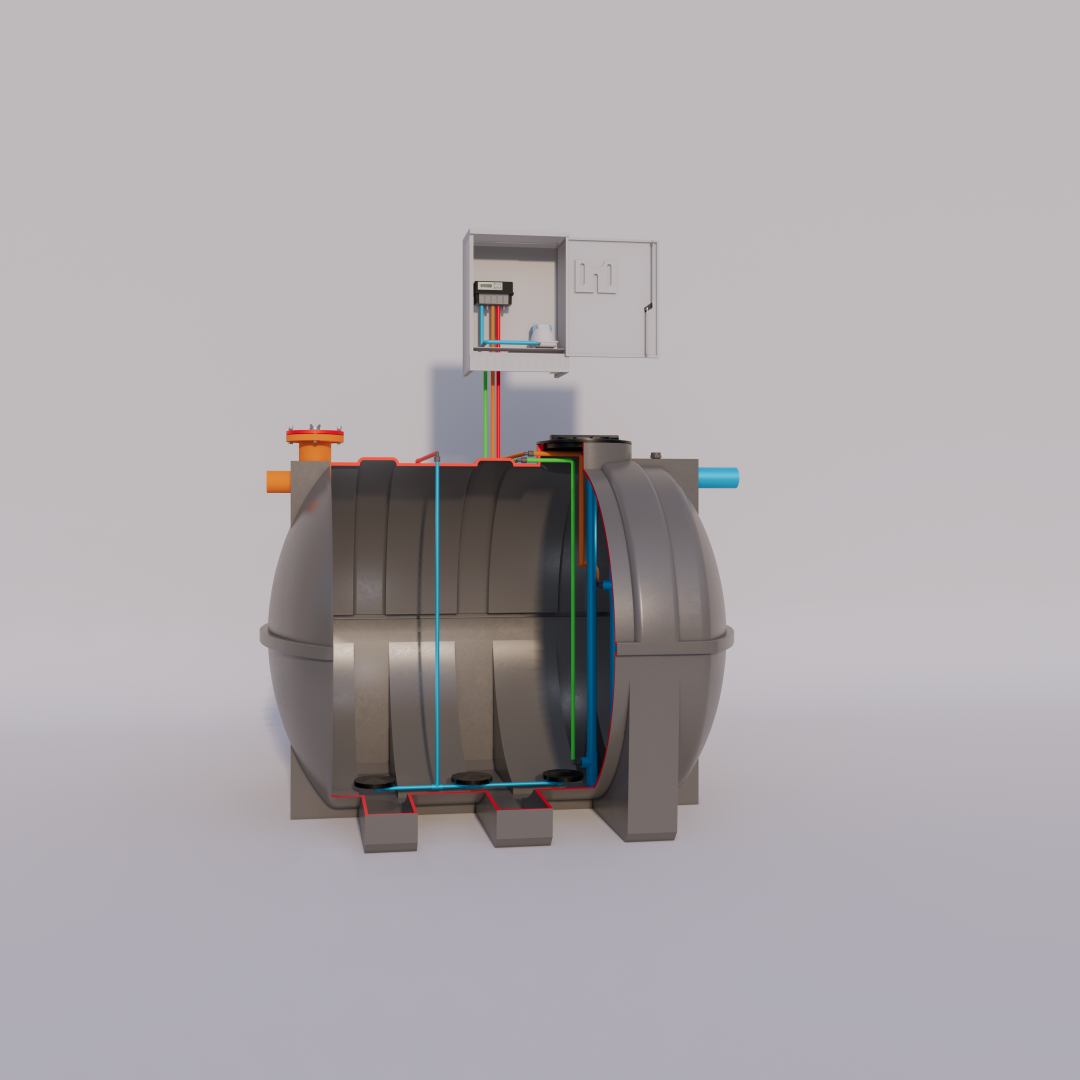

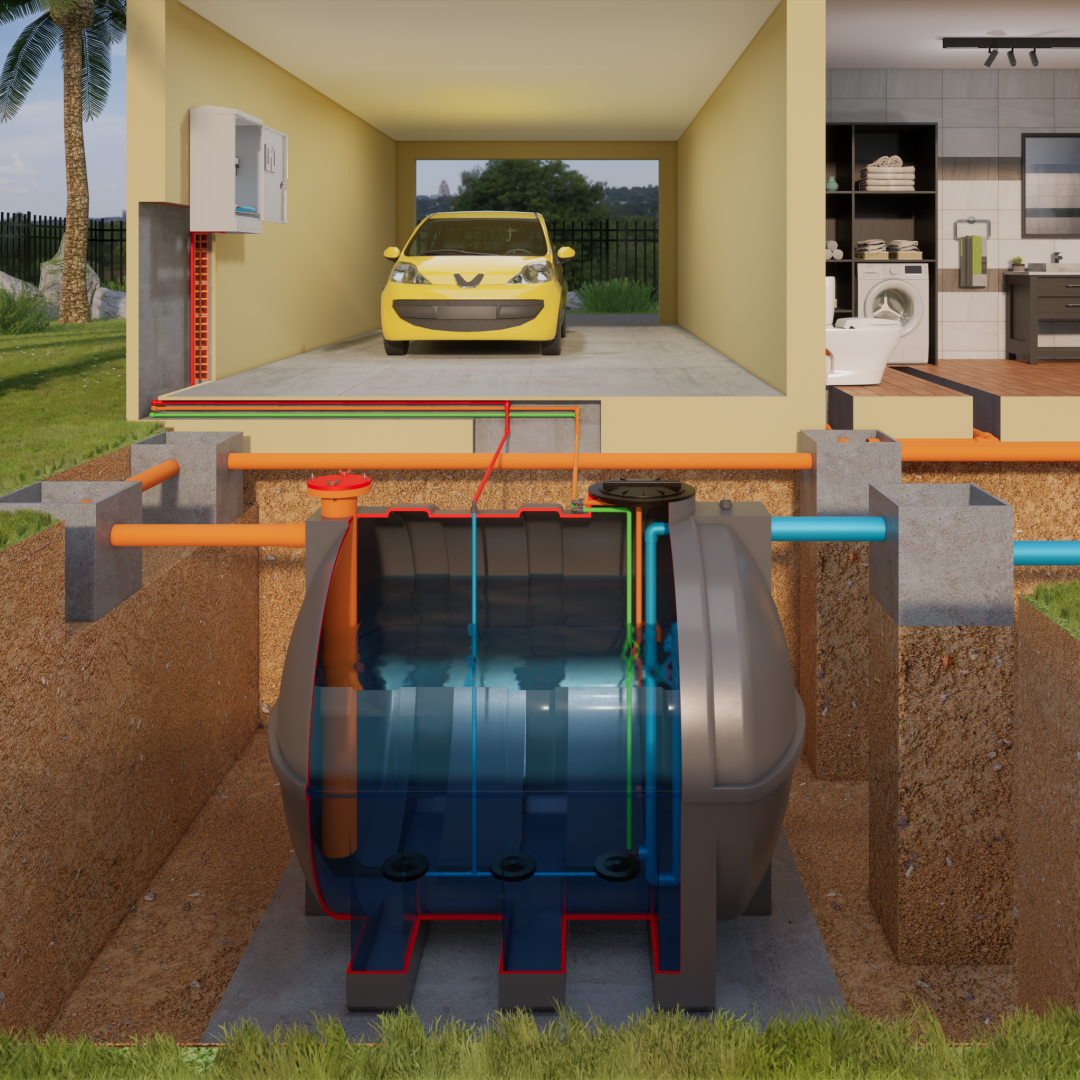

Micro SBR AQUADEPUR^® is an ultra-compact solution in a single reactor, guaranteeing the reliability, longevity, simplicity and high levels of treatment characteristic of Sequential Biological Reactors (SBR).

The “Batch” treatment process is mainly characterised by the fact that aeration and sludge settling are carried out sequentially and cyclically in the same tank.
