Lamellar sludge trap

ECODEPUR DEKTECH

The optimised solution for decanting solids

Os ECODEPUR®^® DEKTECH are equipments designed to separate the sands and sludge that are carried by the contaminated effluent before it is sent to the oil water separator.

Light and easy to install and maintain;
Totally watertight;
Easy to install and maintain;
No energy consumption;
Easy to upgrade to a system for reusing treated effluent for irrigation in accordance with Decree-Law 236/98 of 1 August and NP4434.

Model	Volume (m3)	Flow (l/s)	Length (mm)	Diameter (mm)	Width (mm)	Height (mm)	He (mm)	Hs (mm)	C (mm)	Pipe Diameter (mm)
DEKTECH 6	-	-	1.560	-	960	1.230	930	820	750 x 750	110
DEKTECH 10	-	-	2.580	-	960	1.230	930	820	750 x 1415	110
DEKTECH 15	-	-	3.040	-	960	1.230	915	805	2 x (750 x 750)	125
DEKTECH 20	-	-	5.080	-	960	1.230	880	770	2 x (750 x 1415)	160

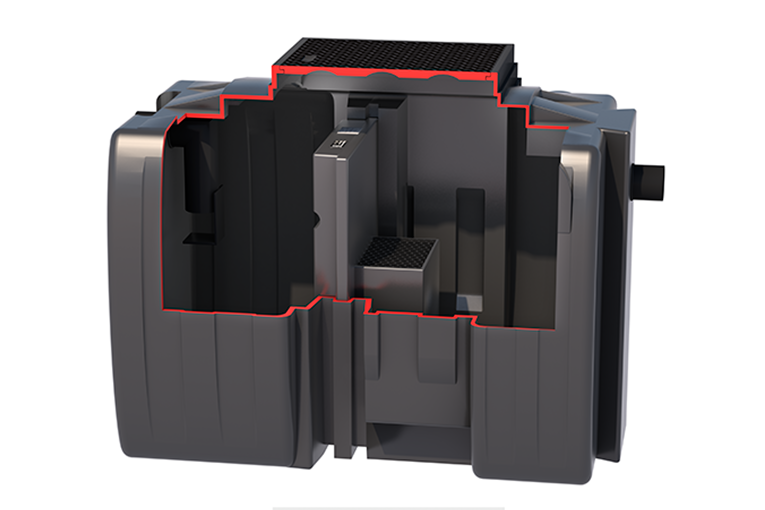

Os ECODEPUR®^® DEKTECH have an optimized operation by reducing the hydraulic load applied by a lamella pack (lamellar decanting) and by developing processes for “discrete decanting” of solids and flotation of light substances in a Piston Flow.

The use of ECODEPUR Lamellar Decanter^® DEKTECH whenever the aim is to remove coarse solids from domestic effluents or effluents contaminated with hydrocarbons through the physical phenomena of decantation and flotation.
