Increase the efficiency of your Oil Water separator

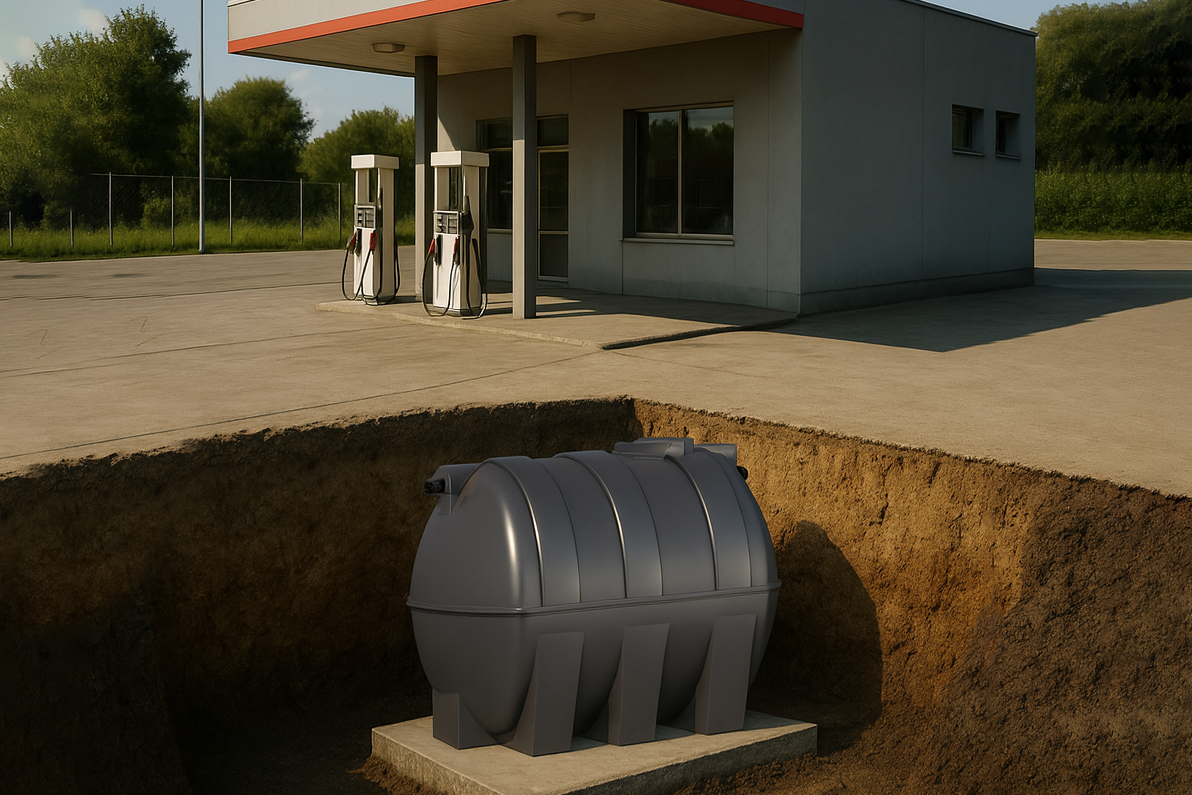

Os The Sludge Traps ECODEPUR® DS, are equipments designed to separate the sands and sludge that are carried by the contaminated effluent before it is sent to the oil water separator.
Os The Sludge Traps ECODEPUR® DS, are equipments designed to separate the sands and sludge that are carried by the contaminated effluent before it is sent to the oil water separator.
| Model | HAB (hab/eq) | Volume (m3) | Flow (l/s) | Length (mm) | Diameter (mm) | Width (mm) | Height (mm) | He (mm) | Hs (mm) | C (mm) | Pipe Diameter (mm) | Documents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DS-500 | - | - | 731 | 700 | - | 1.255 | 955 | 785 | 400 | 110 | ||
| DS-1000 | - | - | - | 1.210 | - | 1.380 | 1.080 | 1.030 | 600 | 110 | ||
| DS-1500 | - | - | 1.350 | 1.210 | - | 1.310 | 1.065 | 1.025 | 400 | 125 | ||
| DS-2000 | - | - | - | 1.530 | - | 1.655 | 1.400 | 1.350 | 400 | 160 | ||
| DS-3000 | - | - | 1.900 | 1.500 | - | 1.550 | 1.285 | 1.205 | 400 | 160 | ||
| DS-4000 | - | - | - | 1.890 | - | 1.940 | 1.675 | 1.625 | 400 | 160 | ||
| DS-5000 | - | - | 2.320 | 1.800 | - | 1.870 | 1.560 | 1.475 | 400 | 200 |
Sludge Traps work by gravity, decanting the solids that flow into them.
It is recommended that the ECODEPUR solids decanters be installed.® DS, in an oily water treatment line upstream of the Hydrocarbon Separator.
