Holding Tank

ECODEPUR® FE | 1.5 to 5 m3

For effluent storage

Capacity up to 5 m3

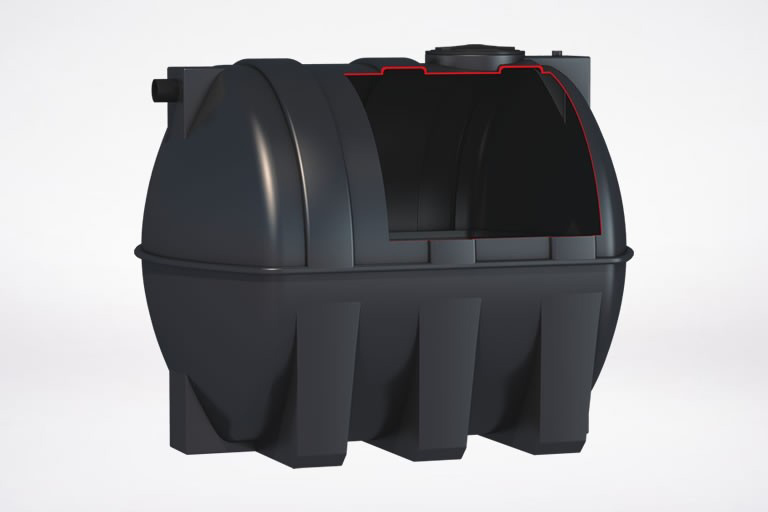

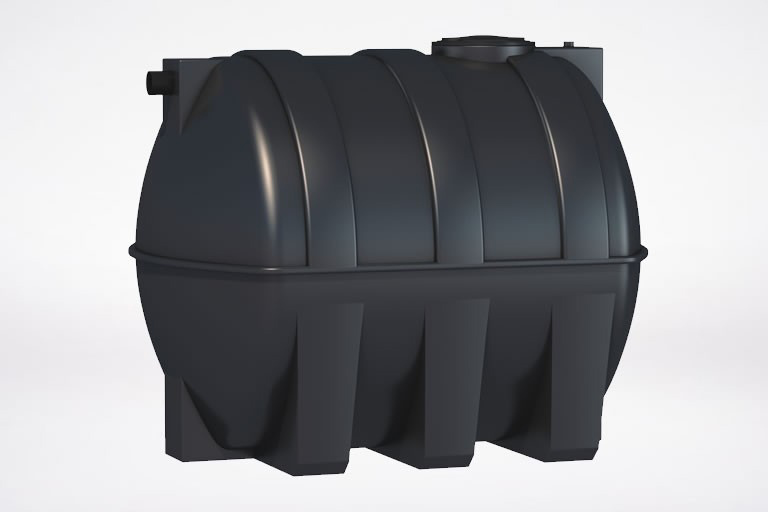

The ECODEPUR® FE Holding Tanks are intended for wastewater storage in places where the treated effluent drainage is not feasible or legally allowed.

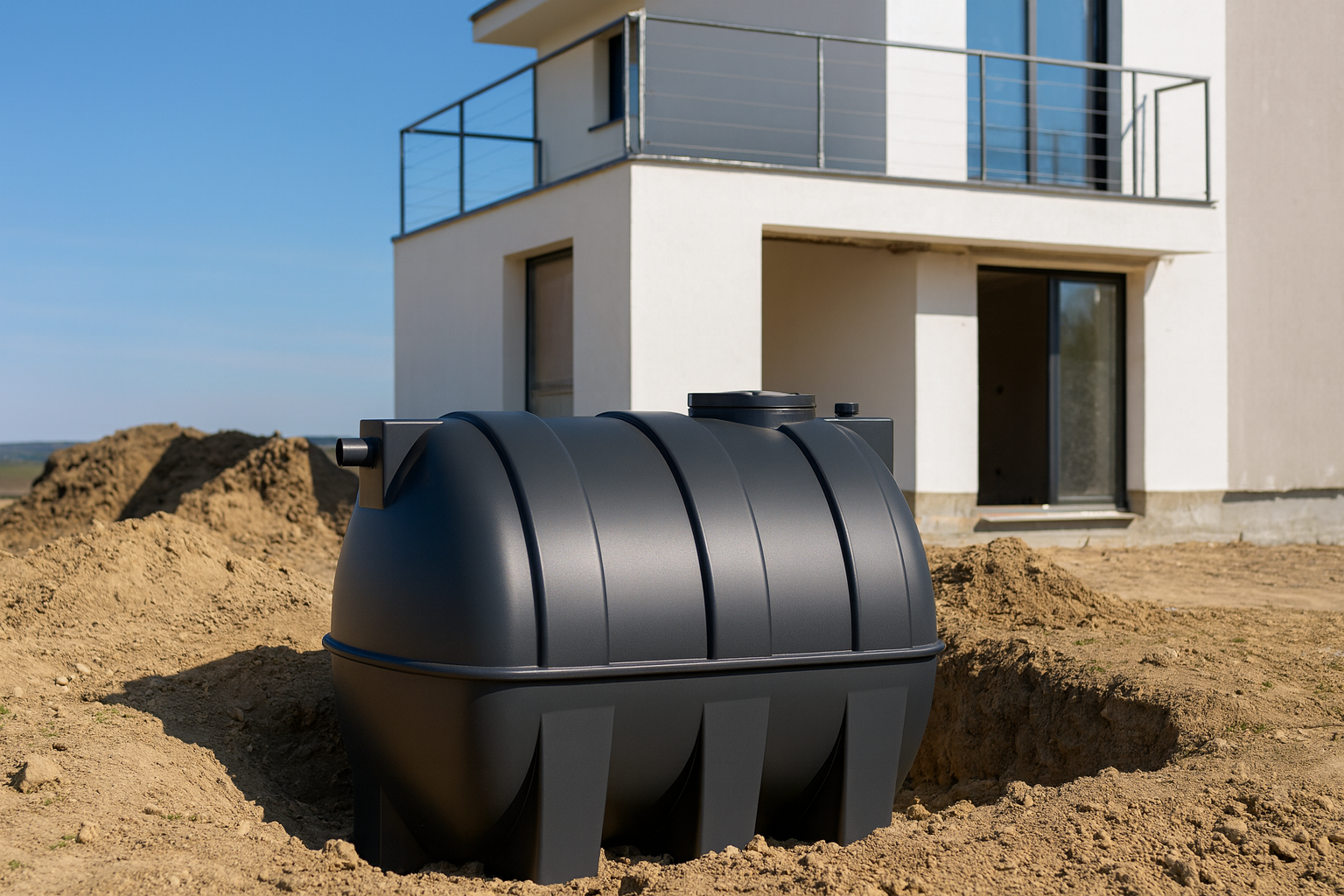

A watertight tank is a fully sealed underground tank used for the temporary storage of domestic wastewater. Unlike septic tanks, it does not incorporate any treatment process; therefore, all stored contents must be periodically removed by an authorised vacuum tanker and transported to an appropriate treatment facility. This solution is suitable for installation in locations where wastewater discharge or on-site treatment is not permitted or technically feasible.

  • Light and easy to install and maintain;
  • Easy to install and maintain;
  • No unpleasant odours, with adequate ventilation;
  • Total watertightness (due to the material in which they are built, there are no leaks through the constituent walls, unlike traditional concrete systems);
  • They do not require any kind of energy consumption;

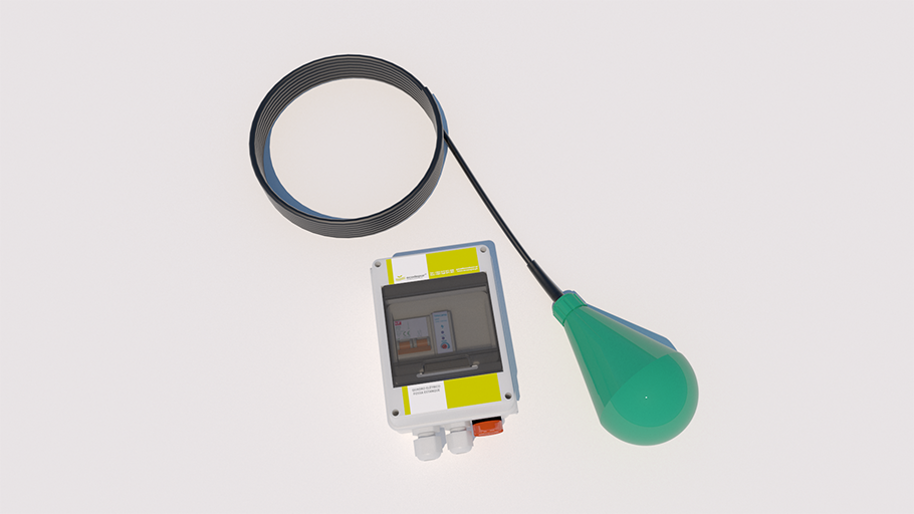

  • Possibility of incorporating an acoustic alarm probe directly into the structure of the equipment.
ModelHAB (hab/eq)Volume (m3)Flow (l/s)Length (mm)Diameter (mm)Width (mm)Height (mm)He (mm)Hs (mm)C (mm)Pipe Diameter (mm)Documents
FE VT1.5--1.3501.210-1.3101.090-400110
FE VT2.0---1.530-1.6551.450-400110
FE VT3.0--1.9001.500-1.5501.295-400110
FE VT4.0---1.890-1.9401.725-400110
FE VT5.0--2.3201.800-1.8701.605-400110
Residential property
Villas
Camping sites
Schools
Condominiums
Allotments

Technical documentation

Contact us

We're here to help! Contact us to find out more about our solutions and to discuss your next project with our experts.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

ECODEPUR® FE | 1.5 to 5 m3

You can download the technical information on the equipment here.

ModelFile
FE VT1.5
FE VT2.0
FE VT3.0
FE VT4.0
FE VT5.0

ECODEPUR® FE | 1.5 to 5 m3

You can download the technical information on the equipment here.

Access the technical files
