ECODEPUR® GORTECH® SELFCLEAN grease separator

Performance and automatic cleaning

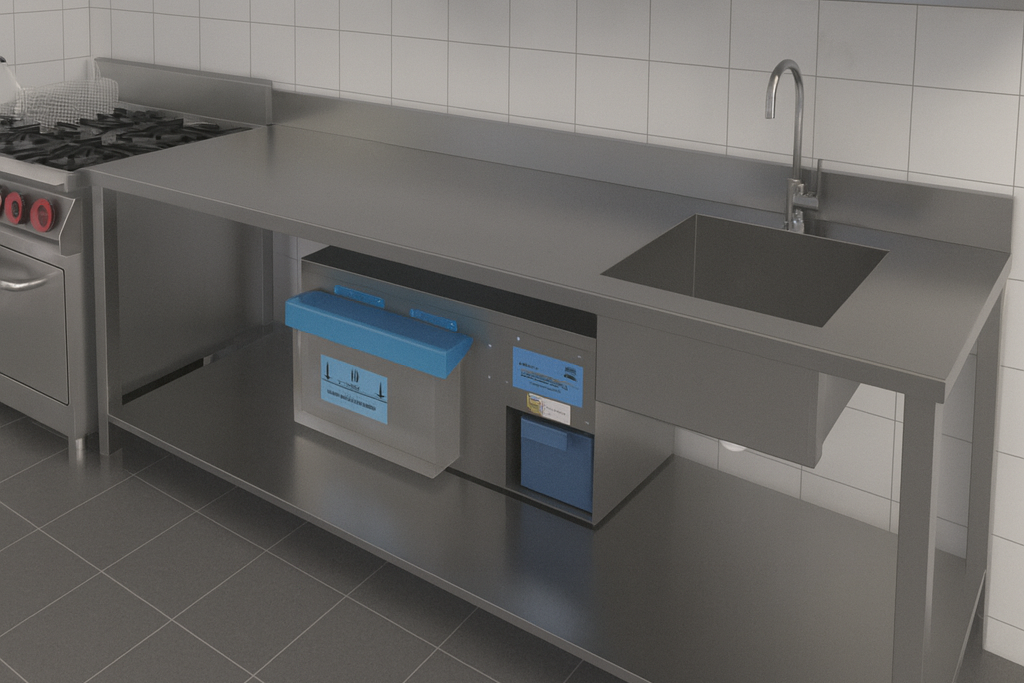

Os Separadores de Gorduras ECODEPUR^®GORTECH^®SELFCLEAN GS 1850-AST grease separators are watertight stainless-steel containers designed to receive and treat greasy wastewater from domestic or industrial activities related to food handling.

Constructed from stainless steel, these separators offer high mechanical resistance and ease of cleaning, making them ideal for sites implementing HACCP (Hazard Analysis Critical Control Point) protocols.

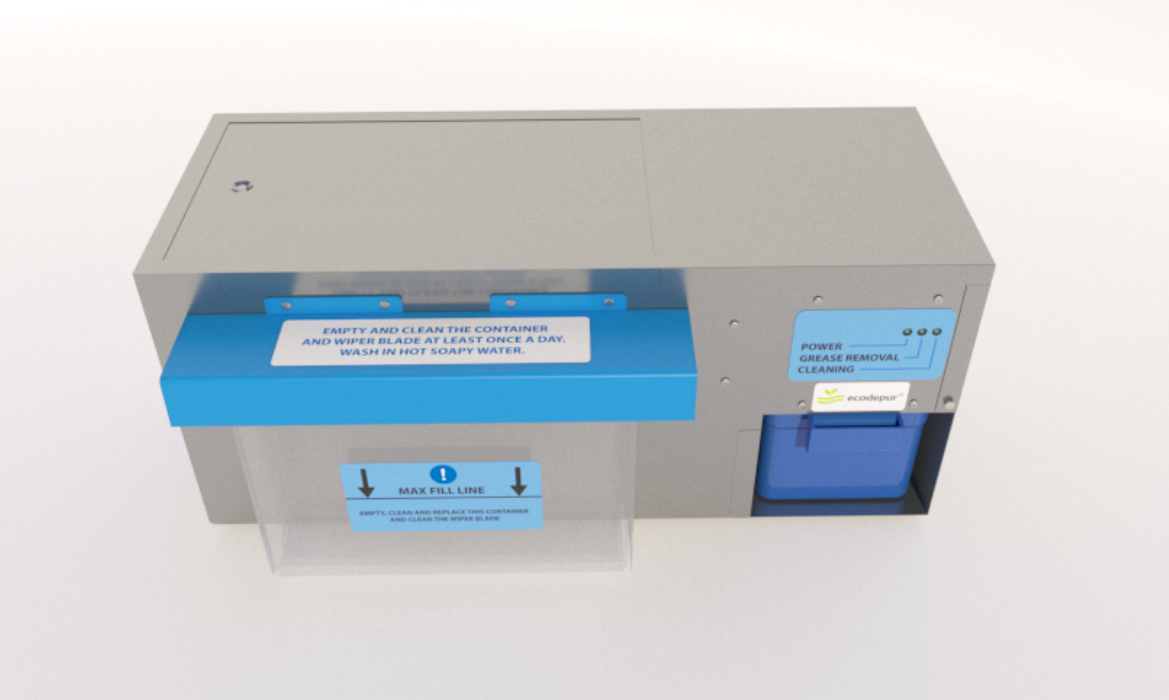

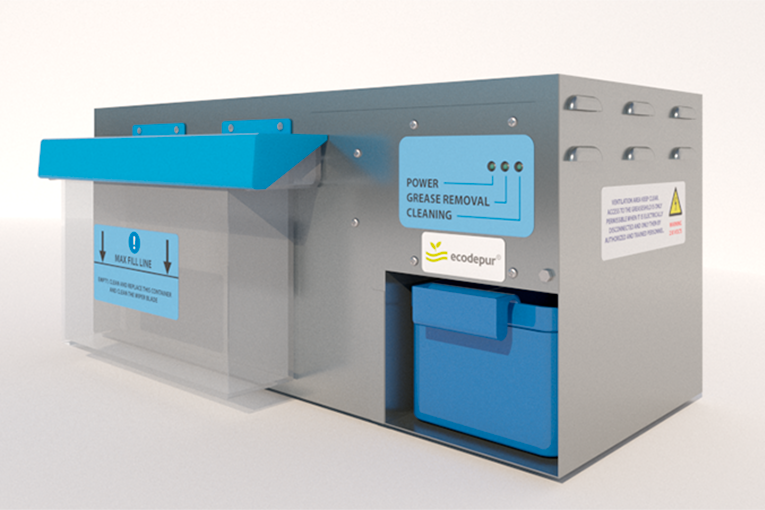

O modelo GORTECH^® SELFCLEAN GS 1850-AST model features innovative automatic cleaning and removal of food waste, including solids and grease, representing the Best Available Technique (BAT) for greasy wastewater treatment.

Os Separadores de Gorduras ECODEPUR^® GORTECH^® These separators are designed and manufactured in accordance with European Standards EN 1825-1 and EN 1825-2.

CE marking EN1825-1;
High reduction of oils and fats;
Easy to install and operate;
Automatic self-cleaning cycle;
Automatic removal of solids and grease;
Easy daily maintenance;
Significant reduction in BOD5, COD and TSS;
Best Available Technology (BAT);
Low energy consumption.

Model	HAB (hab/eq)	Volume (m3)	Flow (l/s)	Length (mm)	Diameter (mm)	Width (mm)	Height (mm)	He (mm)	Hs (mm)	C (mm)	Pipe Diameter (mm)	Documents
GORTECH® SELFCLEAN	-	-	1,85	836	-	447	359	177	151	-	1"1/2 (1"1/4 - cleaning pipe)

The Fat Separator ECODEPUR^® GORTECH^® SEFCLEAN GS 1850-AST works to remove and dehydrate the solid organic matter typical of this type of effluent, preventing the appearance of bad odours.

The effluent enters an inlet chamber where the solids are retained until subsequent sieving. At this stage, the gradates are removed by a sieve which automatically dehydrates and transports the solids to a removable tank. This screening takes place at the effluent inlet, before it enters the grease separator.

Subsequently, through a set of baffles and the reversal of the flow direction due to gravity differences, the grease accumulates on the surface, allowing it to be removed automatically by the equipment. The direction of operation allows the effluent to travel a distance corresponding to twice the length of the equipment, thus increasing the retention time and maximising the operation of the equipment.
