ECODEPUR® GORTECH® grease separator

High efficiency in effluent pre-treatment

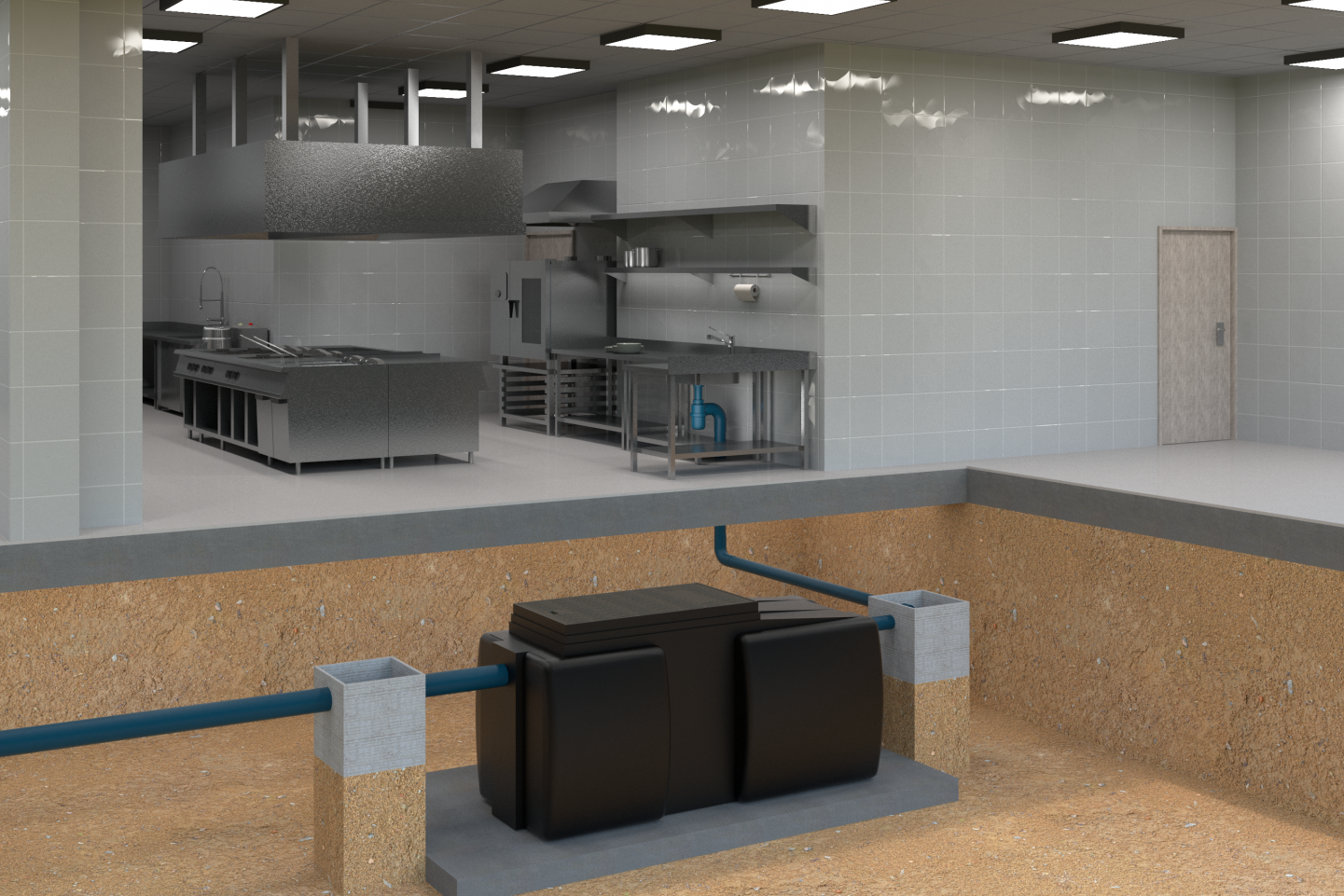

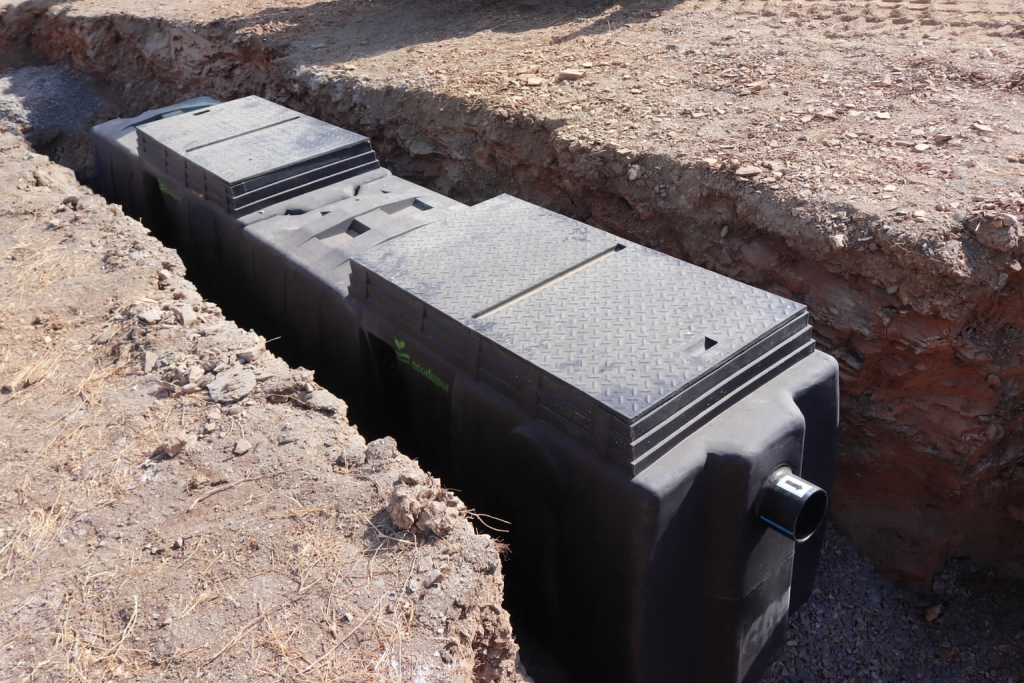

Underground solution with high grease separation efficiency and large grease storage capacity.

Os Separadores de Gorduras ECODEPUR^® GORTECH^® grease separators are systems designed to receive and treat greasy wastewater from domestic or industrial activities related to food handling and preparation.

They are designed and manufactured in accordance with European Standard EN 1825-1 and are CE marked, in compliance with the requirements of Regulation (EU) No 305/2011 of the European Parliament and of the Council on construction products.

CE marking EN1825-1;
Sludge trap incorporated;
Cover to protect internal components;
Possibility of incorporating a by-pass and an acoustic and luminous alarm probe directly into the structure of the equipment;
High storage capacity for separated products;
Easy to install and maintain;
Light and easy to install and maintain;
Totally watertight (due to the construction materials, there are no leaks in the walls, in contrast with the traditional concrete systems);
No unpleasant odours with adequate ventilation;
No power consumption.

Model	Volume (m3)	Flow (l/s)	Length (mm)	Diameter (mm)	Width (mm)	Height (mm)	He (mm)	Hs (mm)	C (mm)	Pipe Diameter (mm)
GORTECH® NS2	-	-	1.560	-	960	1.230	930	820	750 x 750	110
GORTECH® NS4	-	-	2.580	-	960	1.230	930	820	750 x 1415	110
GORTECH® NS6	-	-	4.060	-	960	1.230	915	805	(750 x 750) + (750 x 1415)	125
GORTECH® NS10	-	-	5.080	-	960	1.230	880	770	2 x (750 x 1415)	160

The operation of grease separators requires no energy consumption and is based on the gravitational separation of materials with a different density to water. The heavier materials (sludge, sand, etc.) settle in the pre-decantation compartment.
being held there.

This compartment also retains fats that are in easily flotable forms. Only water and substances lighter than water, namely the fats to be separated, pass into the separation zone.

The grease accumulates on the surface, while the clean water comes out at a level that doesn't allow the phases to mix.
