Compact Wastewater Treatment Plant

ECODEPUR® MBR

Membrane Technology

Excellence and technology in wastewater treatment

Domestic wastewater treatment systems ECODEPUR® MBR (Membrane Bioreactors)^®are advanced wastewater treatment solutions that combine biological treatment by activated sludge with membrane filtration technology.

This innovative technology offers several advantages over conventional activated sludge processes, including higher biomass concentrations, the elimination of sedimentation requirements, and a significant improvement in final effluent quality.

Legal framework

ECODEPUR® MBR^® allow treated water to be reused for non-potable purposes such as flushing toilets, watering private gardens, washing up, washing vehicles and fire-fighting reserves.

Modularity and ease of extension;
High quality treated water thanks to ultrafiltration (UF) technology;
Reduced space requirements compared to conventional systems;
Plug & Play solutions;
Robust automatic systems with simple operation;
Reduced labour required for installation;
Installation;
Factory-tested stations;
Integrated telemonitoring and remote management system.

Model	Flow (l/s)	Length (mm)	Diameter (mm)	Width (mm)	Height (mm)	He (mm)	Hs (mm)	C (mm)	Pipe Diameter (mm)
MBR 25	5	2.400	-	1.200	1.800	-	-	-	-
MBR 50	10	2.400	-	1.200	1.800	-	-	-	-
MBR 100	20	3.000	-	1.400	2.000	-	-	-	-
MBR 150	30	3.500	-	1.700	2.000	-	-	-	-
MBR 200	40	4.000	-	1.700	2.300	-	-	-	-
MBR 300	60	4.500	-	2.100	2.300	-	-	-	-
MBR 400	80	5.500	-	2.100	2.500	-	-	-	-
MBR 500	100	6.500	-	2.100	2.500	-	-	-	-
MBR 600	120	7.000	-	2.100	2.800	-	-	-	-
MBR 700	140	8.000	-	2.100	2.800	-	-	-	-
MBR 800	160	9.000	-	2.100	2.800	-	-	-	-
MBR 1000	200	10.000	-	2.100	2.800	-	-	-	-
MBR 1200	240	11.500	-	2.100	3.000	-	-	-	-

The reactor's key technology is the MBR membrane module, which is made up of several laser-welded plates, allowing for various modular configurations depending on the design, project and space available for installation.

Membrane filtration technology reduces viruses and bacteria with efficiency levels of over 99.9999%, making the treated effluent perfectly suitable for watering green spaces or other types of reuse for non-potable uses, such as flushing toilets, water for firefighting, various washes, ornamental ponds and fountains, and cooling water.

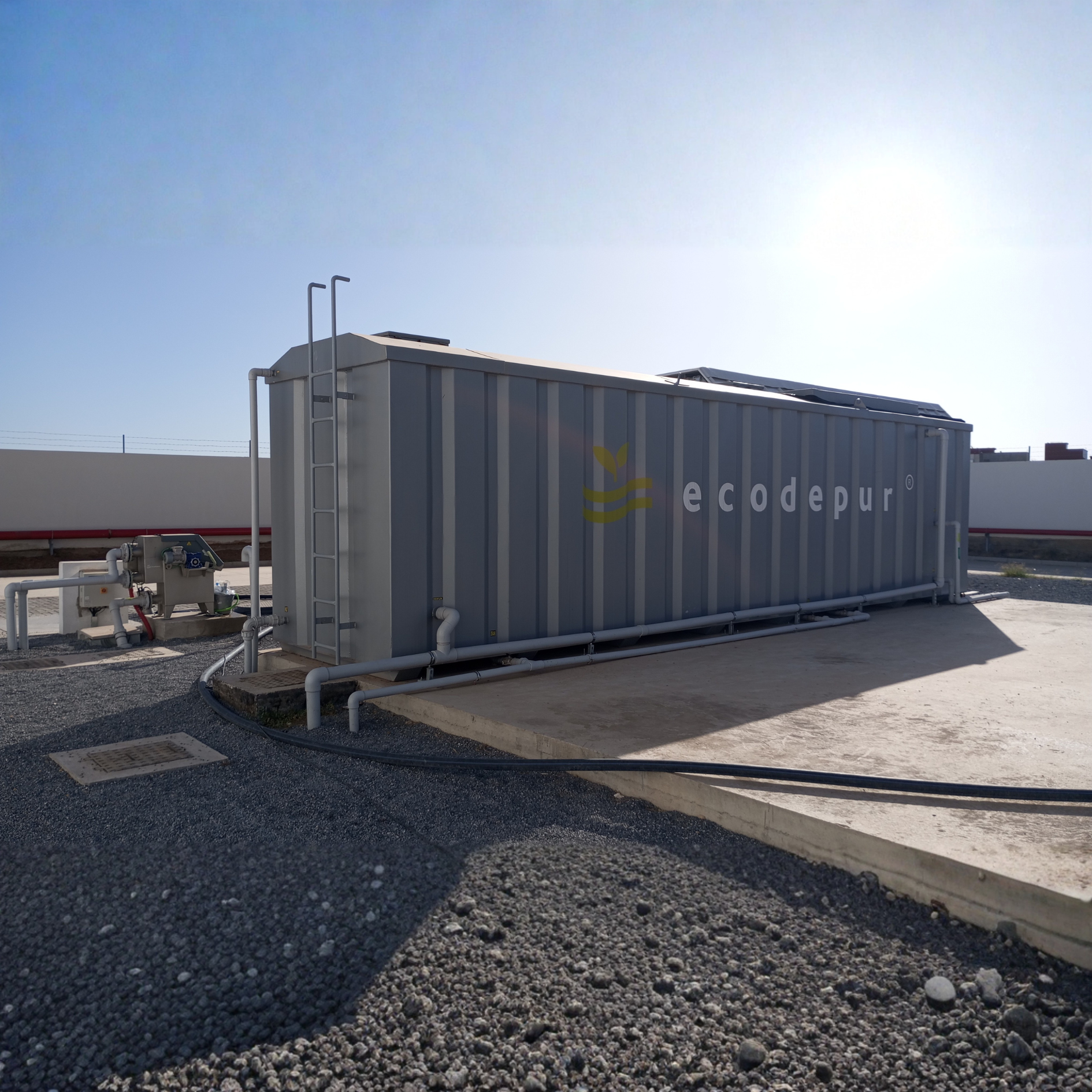

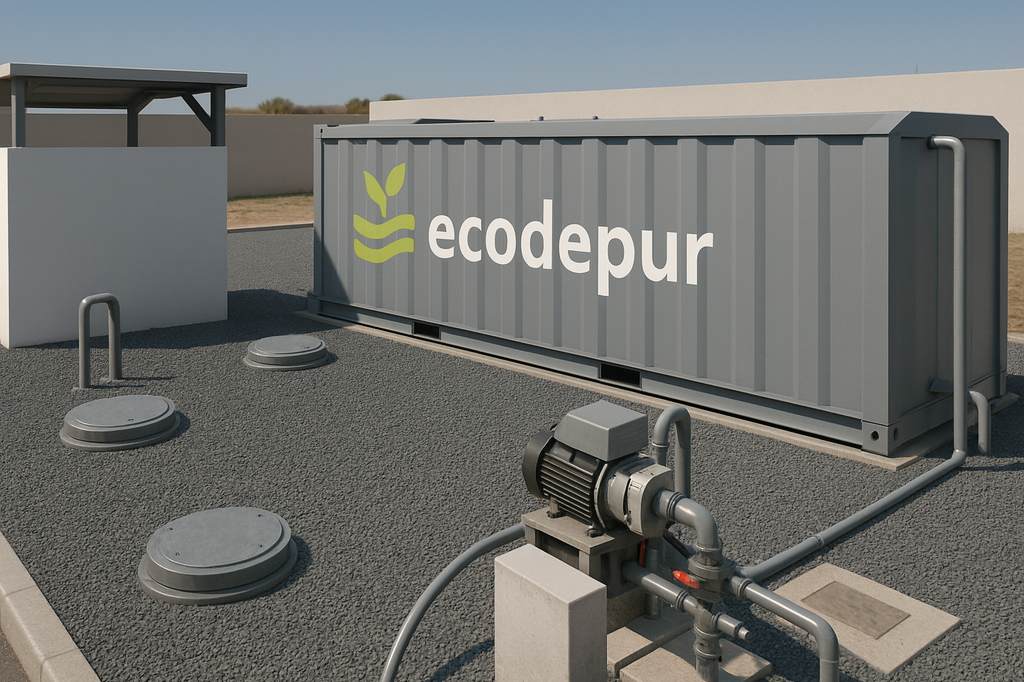

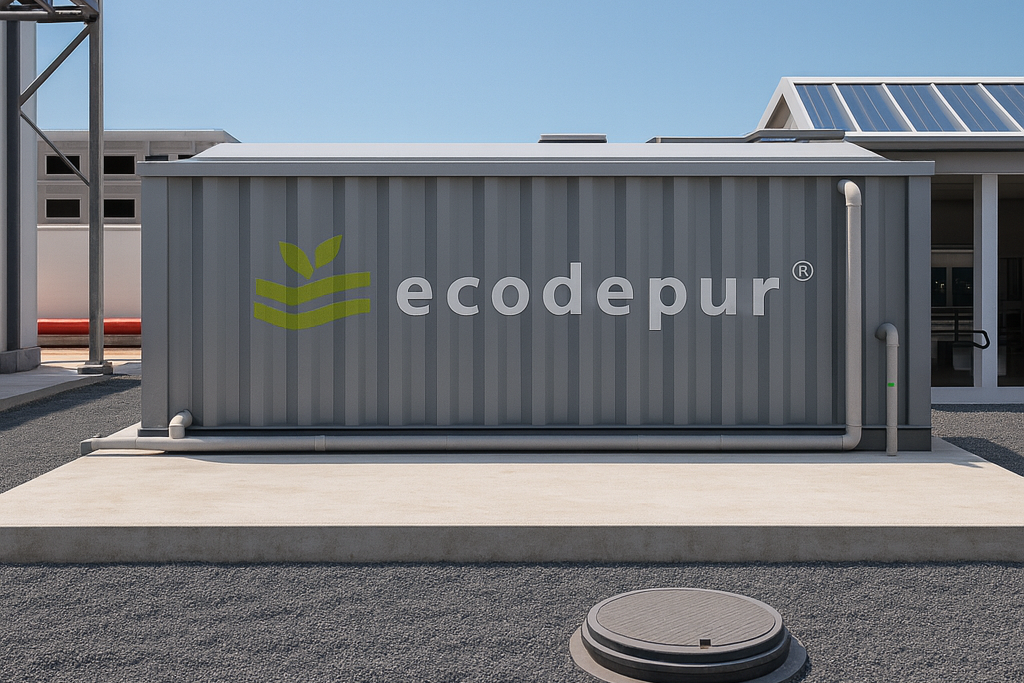

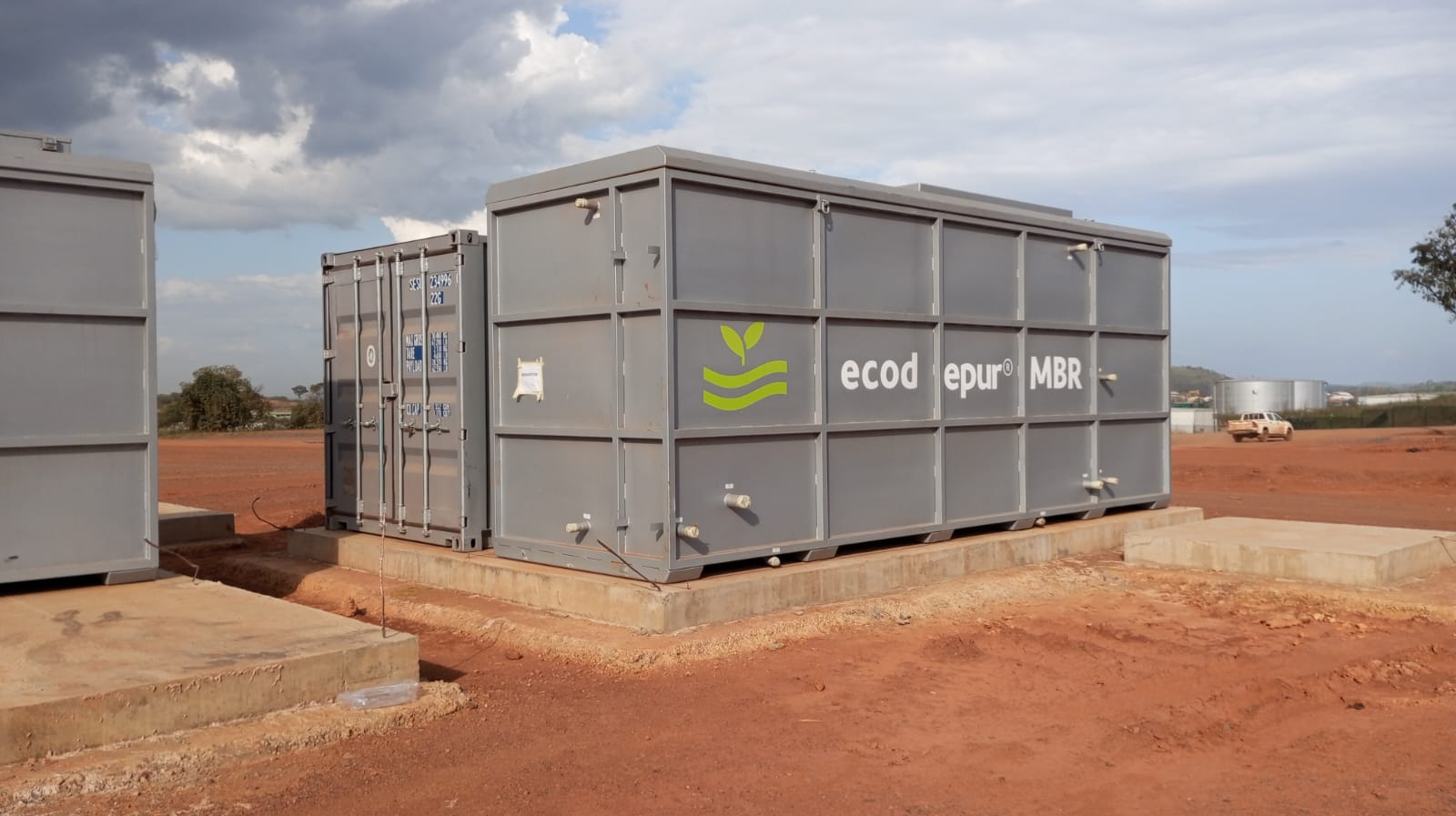

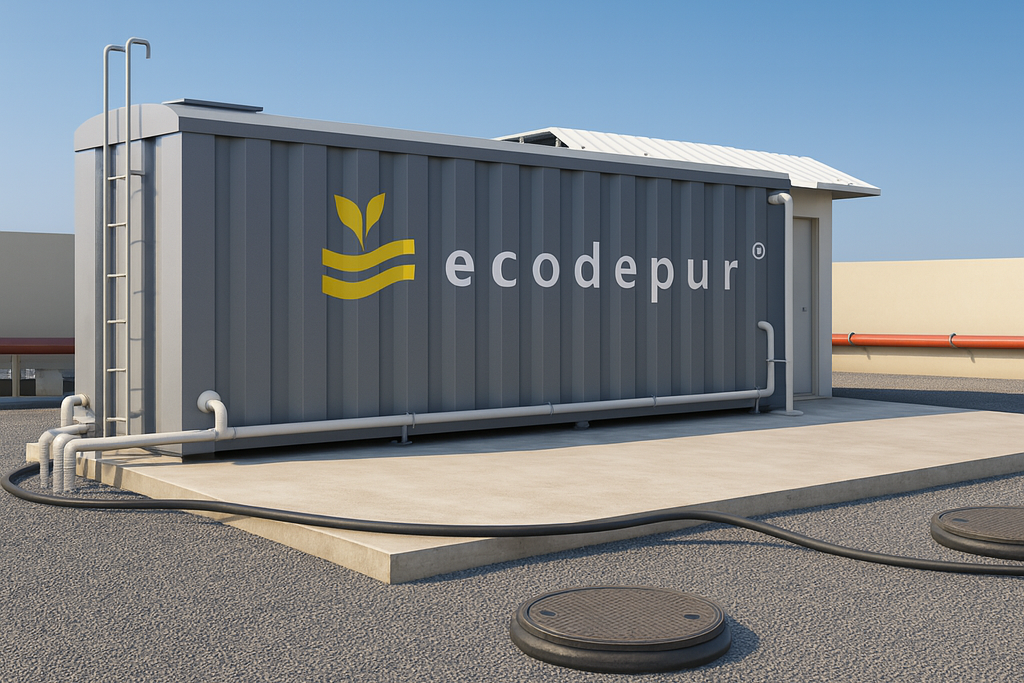

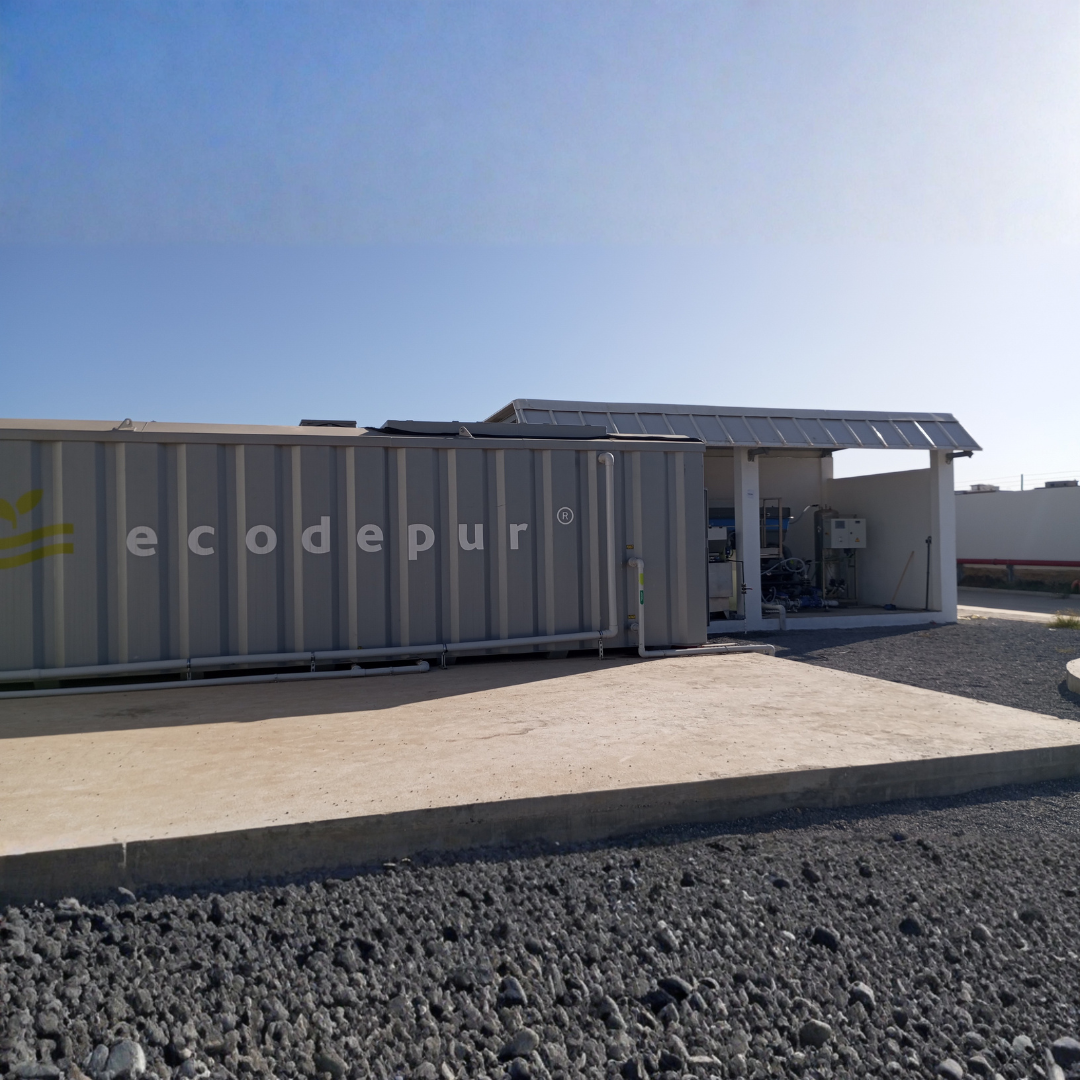

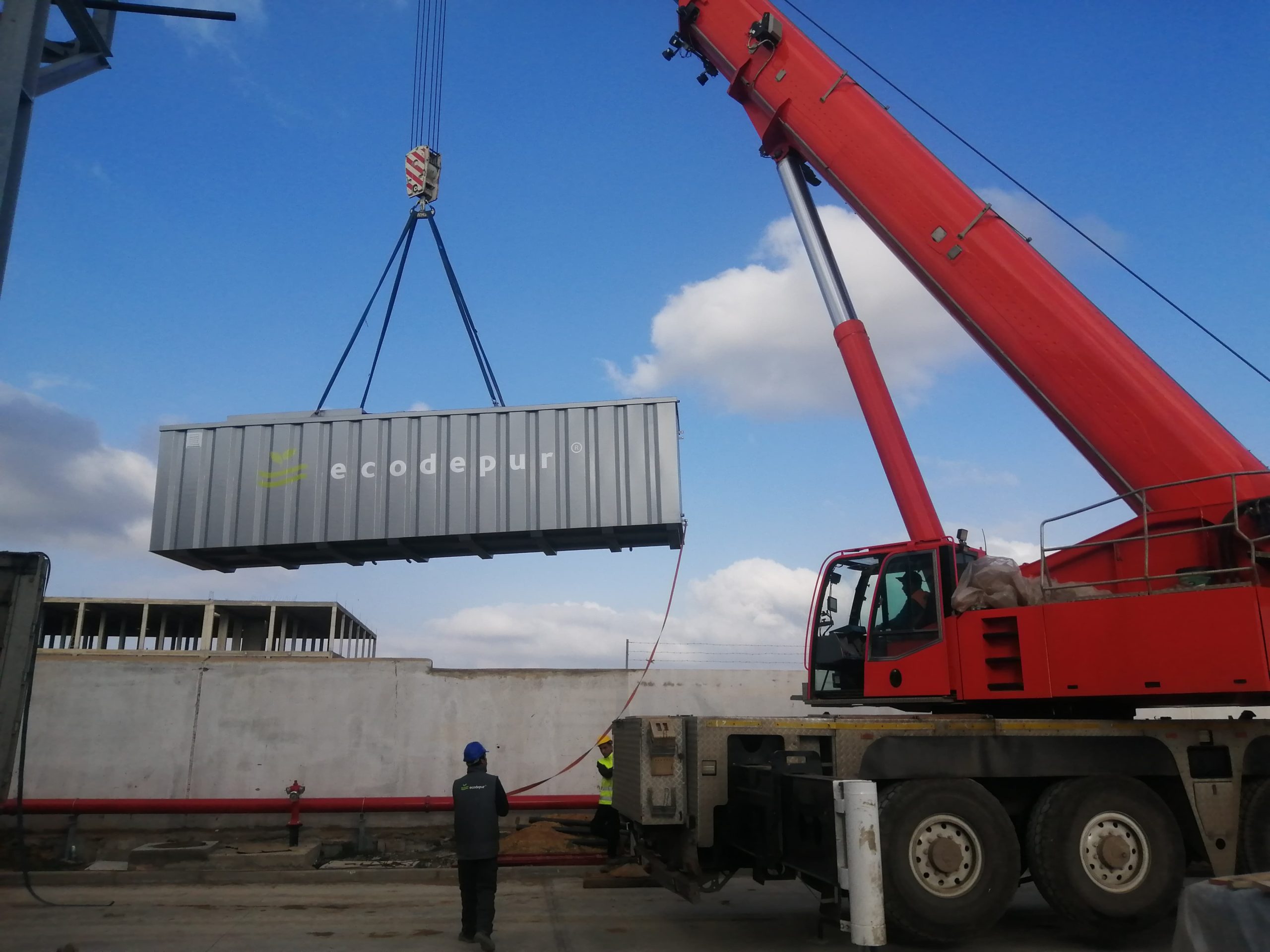

ECODEPUR® MBR (Membrane Bio Reactor) compact membrane bioreactors are supplied in a compact, modular and plug & play configuration, allowing them to be quickly commissioned once they arrive at the installation site.
