Underground Reservoirs

ECODEPUR® RS

The practical underground water storage solution

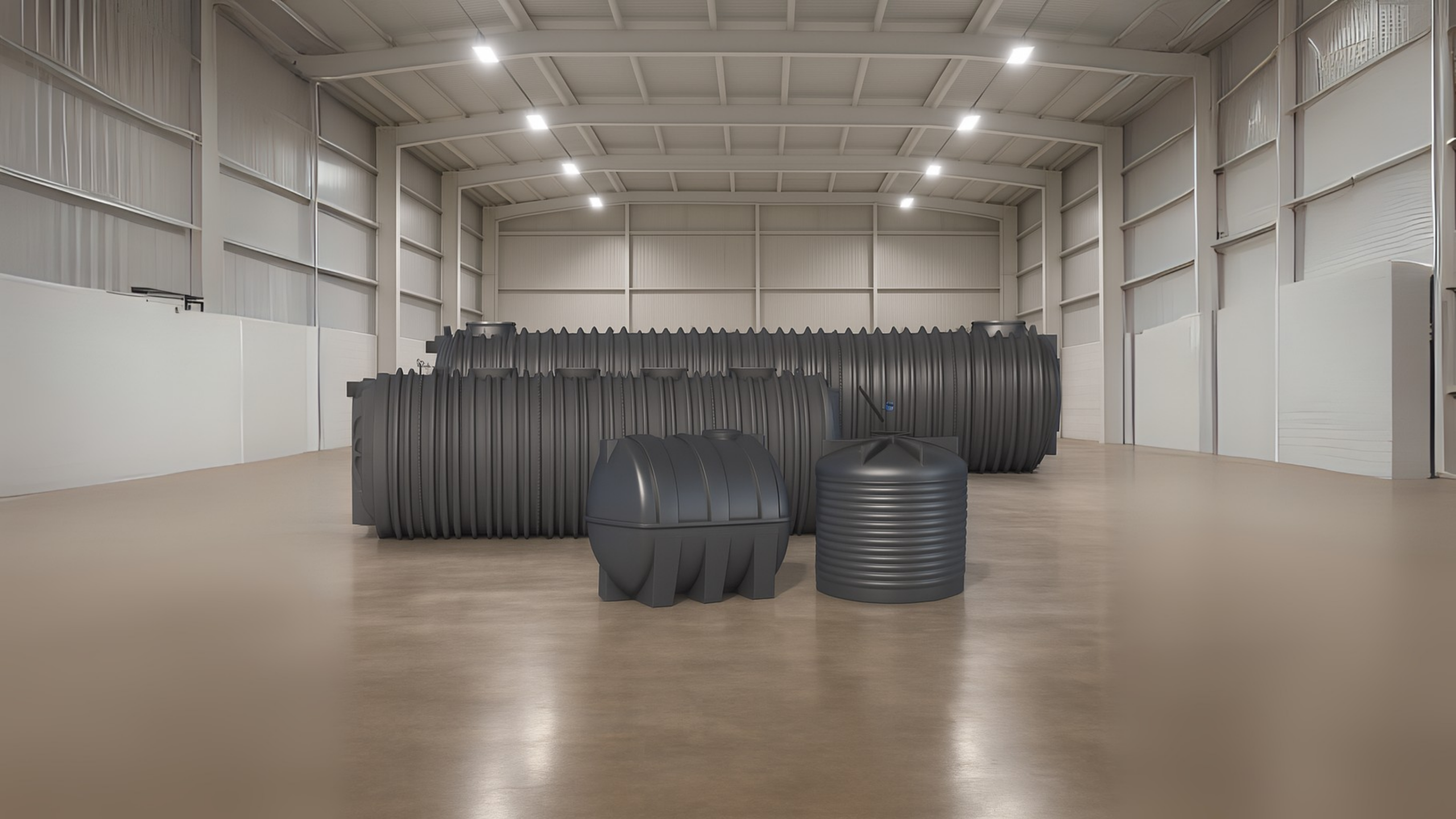

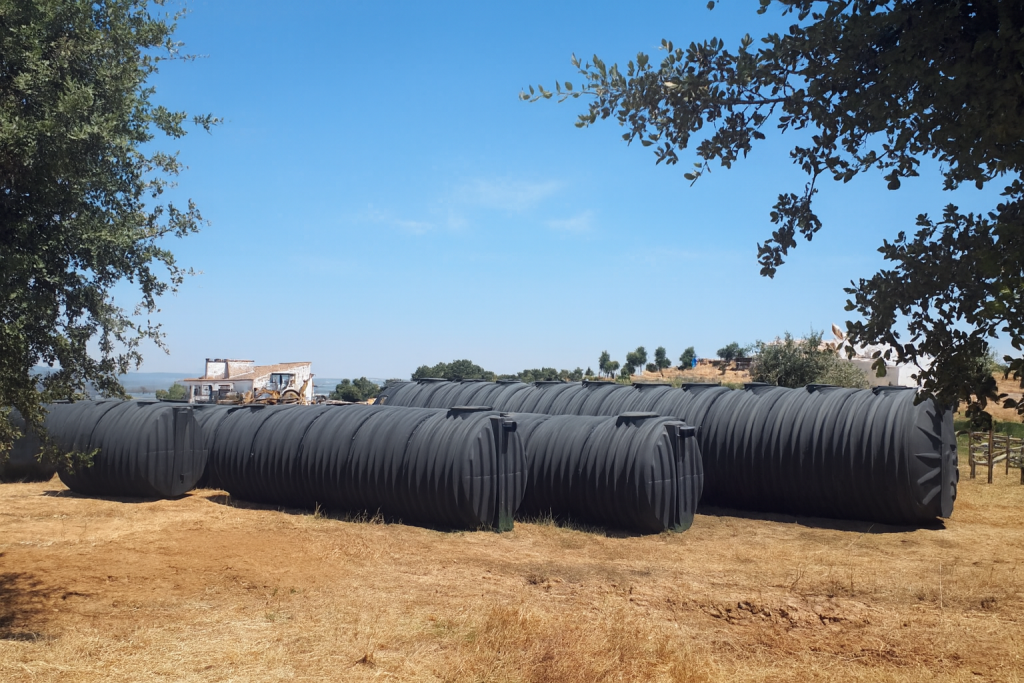

ECODEPUR® RS Underground Reservoirs are designed to store water for human consumption, urban, industrial and agricultural uses. They guarantee the availability of water, an essential resource in times and places where it may be scarce, as well as contributing to sustainable and efficient use.

The main advantages are:
- Suitable for storing water for human consumption (supplied with a Food Quality Declaration of Conformity);
- High mechanical resistance and insensitivity to corrosion;
- Total watertightness (due to the material in which they are built, there are no leaks through the constituent walls, unlike traditional concrete systems);
- Easy to install and maintain.

  • Made from anti-UV additive polyethylene using a rotomoulding system, which means high mechanical resistance and insensitivity to corrosion;
  • Suitable for storing water for human consumption (supplied with a Food Quality Declaration of Conformity);
  • Totally watertight;
  • Horizontal and vertical reinforcements are properly located, providing the structure with high resistance;
  • Man inlet Ø 400 mm.
ModelHAB (hab/eq)Volume (m3)Flow (l/s)Length (mm)Diameter (mm)Width (mm)Height (mm)He (mm)Hs (mm)C (mm)Pipe Diameter (mm)Documents
RSV-500500-731700-1.255--400-
RSH-15001.500-1.3501.210-1.310--400-
RSV-20002.000--1.530-1.655--400-
RSH-30003.000-1.9001.500-1.550--400-
RSV-40004.000--1.890-1.940--400-
RSH-50005.000-2.3201.800-1.870--400-
RH VT1010.000-3.4402.190-2.265--790-
RH VT1515.000-4.9802.190-2.265--790-
RH VT2020.000-6.5202.190-2.265--790-
RH VT2525.000-8.0602.190-2.265--790-
RH VT3030.000-9.6002.190-2.265--790-
RH VT3535.000-11.1402.190-2.265--790-
RH VT4040.000-12.6802.190-2.265--790-
RH VT4545.000-14.2202.190-2.265--790-
RH MRVT5050.000-8.5202.980-3.050--790-
RH MRVT6060.000-10.0602.980-3.050--790-
RH MRVT7070.000-11.6002.980-3.050--790-
RH MRVT8080.000-13.1402.980-3.050--790-
RH MRVT9090.000-14.6802.980-3.050--790-
RH MRVT100100.000-16.2202.980-3.050--790-
RH MRVT110110.000-17.7602.980-3.050--790-
RH MRVT120120.000-19.3002.980-3.050--790-
