ECODEPUR® SG-ECO INOX grease separator

Wastewater network pre-treatment and protection.

Designed for installation under the worktop / Made from stainless steel

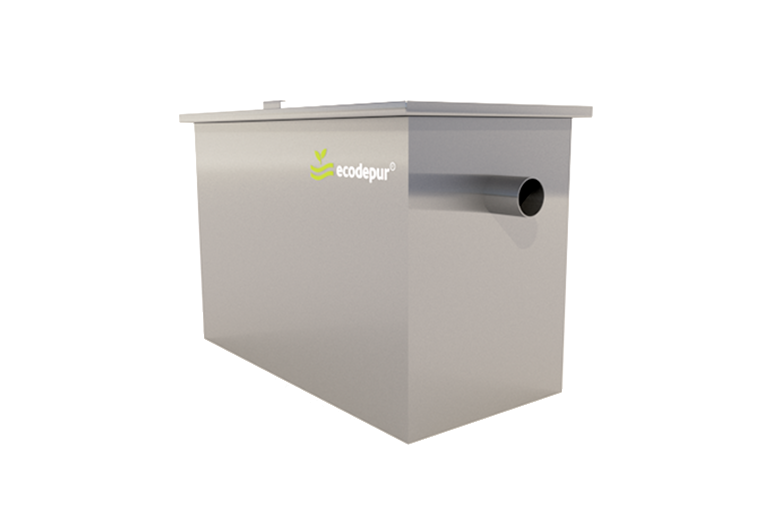

ECODEPUR ® SG-ECO INOX grease separators are constructed from AISI 304 stainless steel and are designed to receive and treat greasy wastewater from domestic or industrial activities related to food handling. Designed for under-counter installation | Constructed from stainless steel.

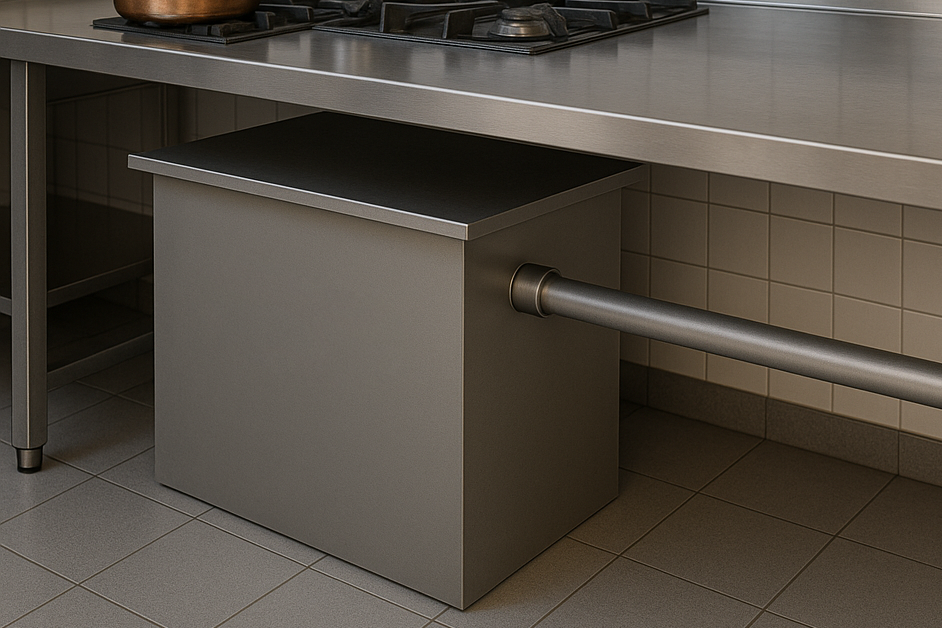

Under-counter installation;
Sludge trap incorporated;
Possibility of incorporating an enzyme activation kit;
Easy to install and maintain;
Totally watertight;
No energy consumption is required.

Model	HAB (hab/eq)	Volume (m3)	Flow (l/s)	Length (mm)	Diameter (mm)	Width (mm)	Height (mm)	He (mm)	Hs (mm)	C (mm)	Pipe Diameter (mm)
SG ECO INOX 1	-	76	0,5	610	-	300	420	305	280	-	50
SG ECO INOX 2	-	104	0,7	750	-	300	460	320	280	-	75
SG ECO INOX 3	-	122	0,8	880	-	300	460	320	265	-	90
SG ECO INOX 4	-	245	1,6	1430	-	300	570	400	355	-	90

The operation of grease separators requires no energy consumption and is based on the gravitational separation of materials with a different density to water.

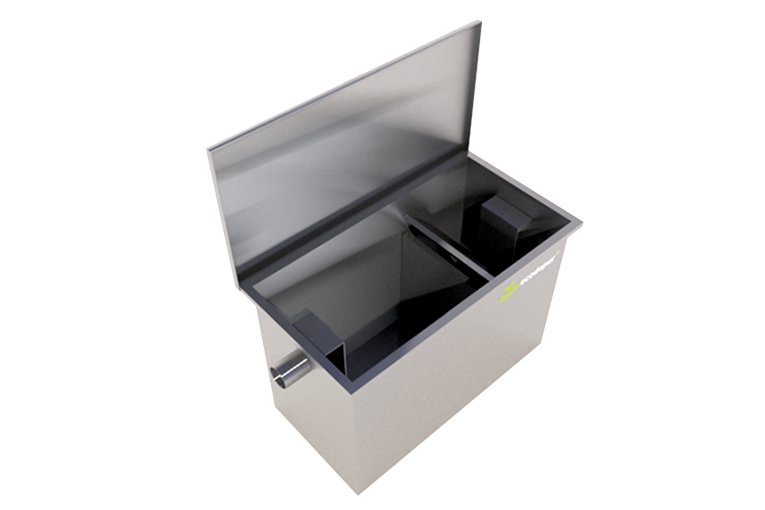

The heavier materials (sludge, sand, etc.) sediment in the pre-decanting compartment and are retained there.

This compartment also retains fats that are in easily flotable forms. Only water and substances lighter than water, namely the fats to be separated, pass into the separation zone.

The grease accumulates on the surface, while the clean water comes out at a level that doesn't allow the phases to mix.
