Oil Water Separator

ECODEPUR® TECHNOIL®

Advanced solution for oily wastewater treatment

ECODEPUR® TECHNOIL® Oil Water Separator are designed for the separation of hydrocarbons from oily wastewater and are intended for underground installation.

They are CE marked and designed in full compliance with European Standard EN 858. These separators are Class I, equipped with a double coalescing cell and a automatic closure device.

The TECHNOIL® range is available in individual modules up to 600l/s.
They are used to treat run-off water from impermeable platforms, due to rainfall events, contaminated with hydrocarbons, such as airports, ports, open car parks, among others.
impermeáveis, devido a eventos pluviométricos, contaminados com hidrocarbonetos, como aeroportos, portos, parques de estacionamento abertos, entre outros.

  • CE marking EN 858-1 (Class 1);
  • High treatment levels (double filtration system);
  • Automatic closure device (massive anti-miscalibration system);
  • Built-in sample collection device;
  • Protective cover for internal components in PE;
  • Possibility of incorporating a by-pass and an acoustic and luminous alarm probe directly into the structure of the equipment;
  • High mechanical resistance and corrosion protection;
  • Light and easy to install and maintain;
  • Underground installation;
  • Easy to install and maintain;
  • Totally watertight;
  • Without power consumption.

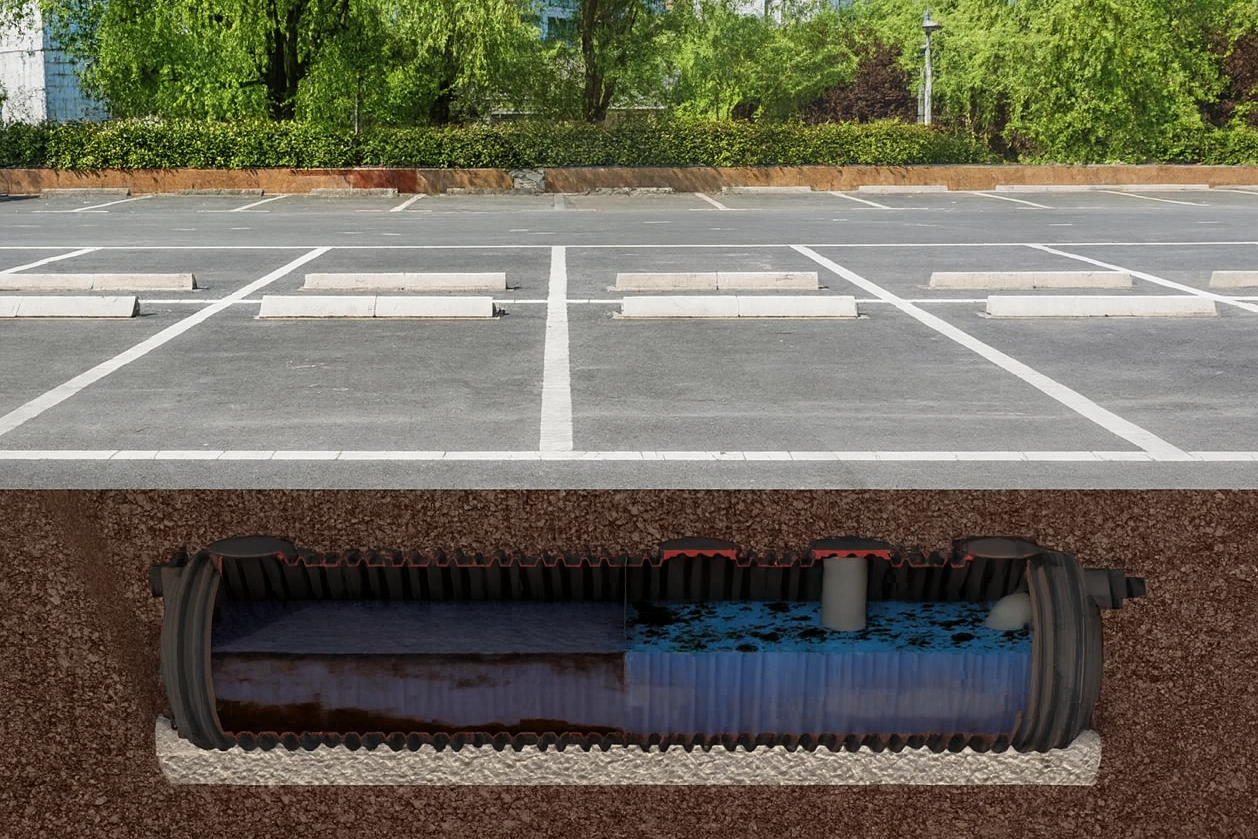

851eb504-5ea3-4afa-ab8e-0348a6be9464
ModelHAB (hab/eq)Volume (m3)Flow (l/s)Length (mm)Diameter (mm)Width (mm)Height (mm)He (mm)Hs (mm)C (mm)Pipe Diameter (mm)Documents
TECHNOIL® NS50--3.4402.190-2.2651.6851.585790315
TECHNOIL® NS100--6.5202.190-2.2651.6851.585790315
TECHNOIL® NS150--9.6002.190-2.2651.6001.500790400
TECHNOIL® NS200--12.6802.190-2.2651.5001.400790500
TECHNOIL® NS250--8.3102.980-3.0502.2102.110790500
TECHNOIL® NS300--9.8502.980-3.0502.2102.110790500
TECHNOIL® NS350--11.3902.980-3.0502.0801.980790630
TECHNOIL® NS400--12.9302.980-3.0502.0801.980790630
TECHNOIL® NS450--14.4702.980-3.0502.0801.980790630
TECHNOIL® NS500--16.0102.980-3.0502.0801.980790630
TECHNOIL® NS550--17.5502.980-3.0502.0801.980790630
TECHNOIL® NS600--19.0902.980-3.0502.0001.900790710
  • Caption: C - Cover | He - Inlet pipe level | Hs - Outlet pipe level
  • All measurements are given in millimetres, with a tolerance of ±2%, and may be changed without prior notice.
Oil Water Separator admits non-chemically emulsified oily water containing hydrocarbons with densities between 0.85 and 0.95. The heavier materials (sludge, sand, etc.) sediment in the pre-sludge trap zone and are retained there. This compartment also retains hydrocarbons that are in easily floatable forms. Only water and substances lighter than water, namely the hydrocarbons to be separated, pass into the separation zone.
The separators are equipped with a coalescing filter, which allows the smaller oil particles to aggregate into larger particles. Aggregation of the particles increases the upward force sufficient to release them from the main flow lines towards the surface. In this chamber, the hydrocarbons accumulate on the surface, while the treated water exits through the bottom of the equipment.
The Oil Water Separator is equipped with an automatic closure device (massive anti-miscalibration system), which prevents hydrocarbons from escaping once the equipment's maximum holding capacity has been reached, thus preventing contamination of the receiving environment. The operation of the Oil Water Separator does not require energy consumption and is based on the gravitational separation of materials with a different density to water, assisted by the presence of an oleophilic coalescing cell.
Airports
Car parks
Scrap stores
Washing areas
Mechanical workshops
Fuel storage areas
Petrol stations (including for own and co-operative consumption)

ECODEPUR®ATEX Alarm Probe

ECODEPUR® ECO-SET Alarm Probe

OilSkimmer

Absorption and Biological Degradation of Hydrocarbons

Cast iron lid

Technical documentation

Equipment Catalogue
Autocad
BIM
Text Prescription
